01 Description

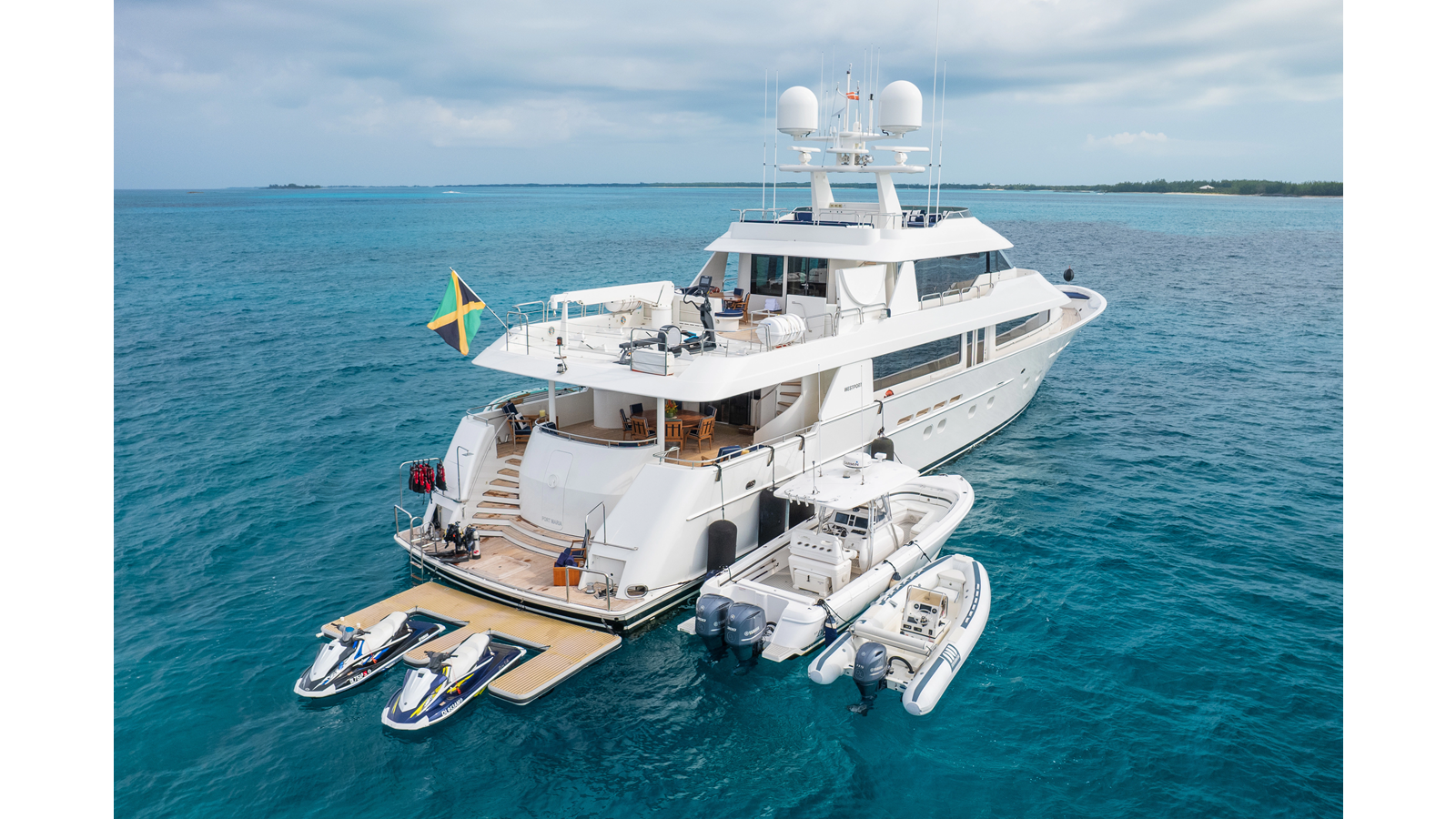

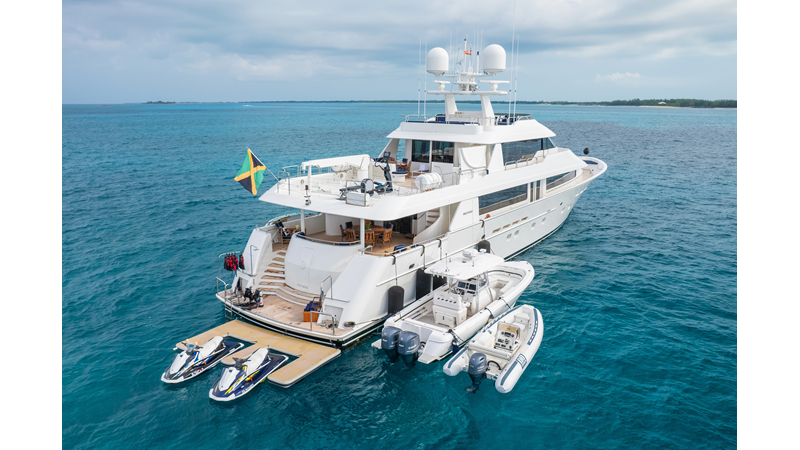

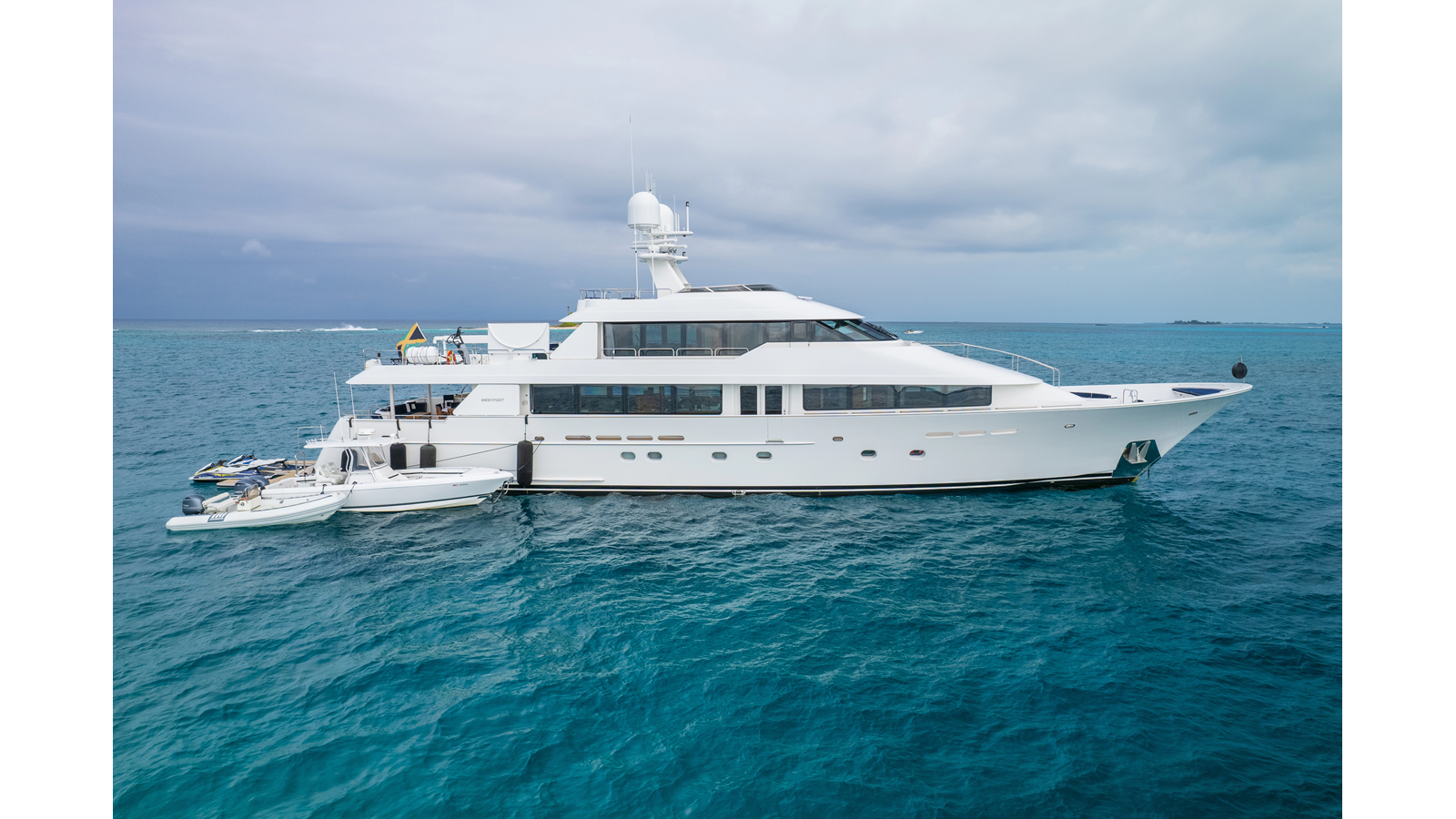

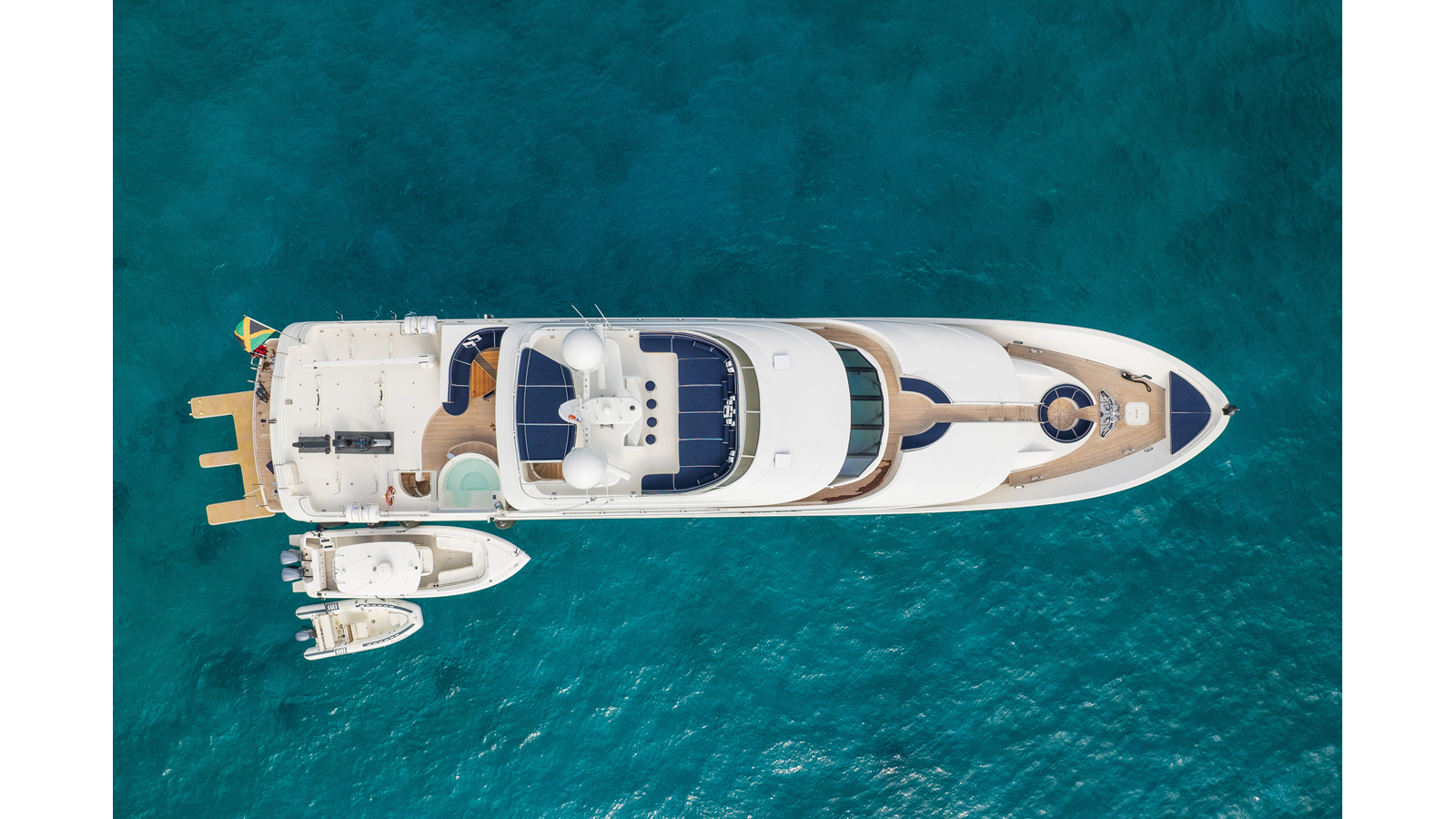

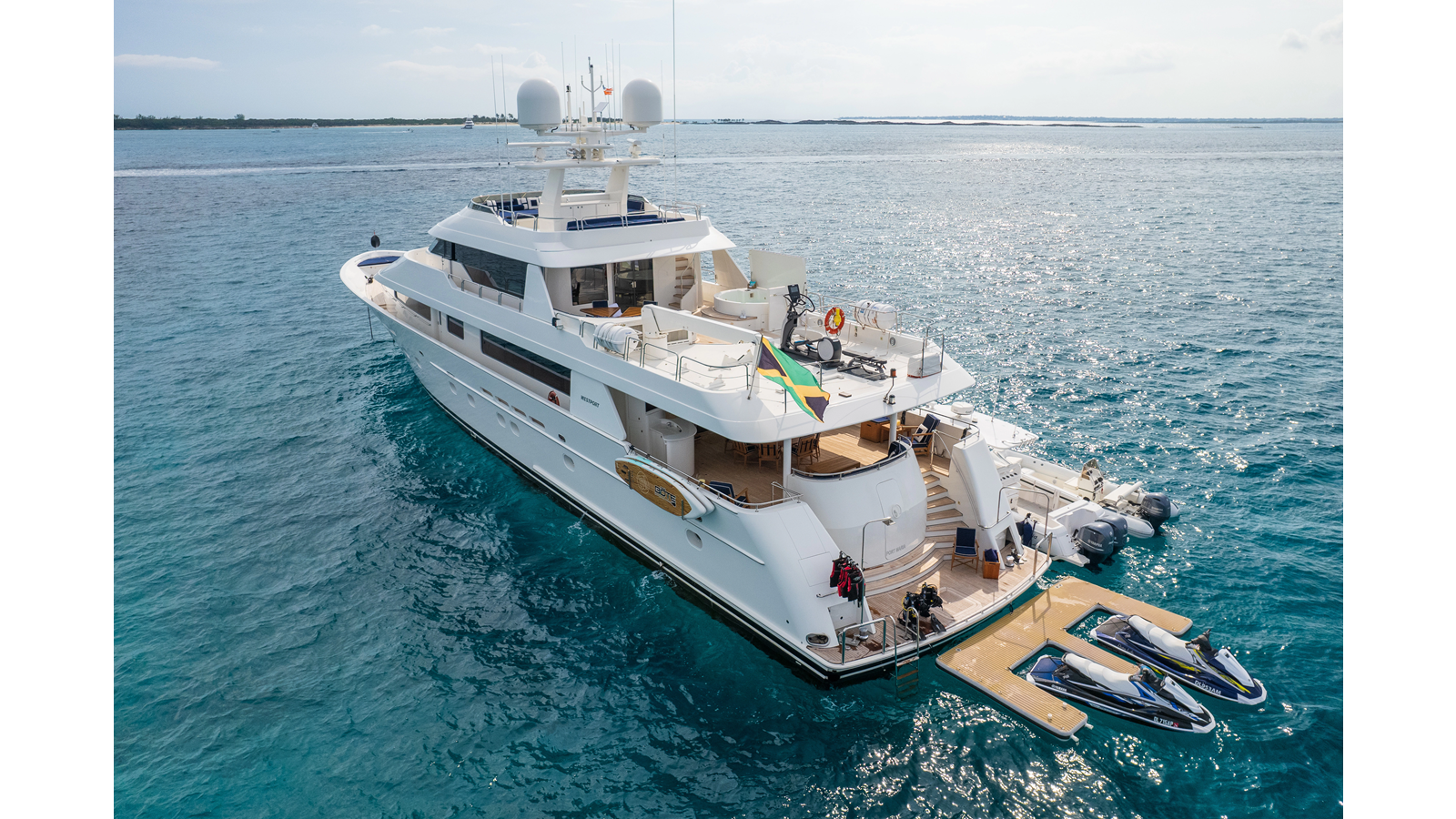

AVALINA is a 130â Westport motor yacht designed by naval architect William Garden with interiors by Pacific Custom Interiors. She represents a proven blend of performance, comfort, and craftsmanship. Built in 2003, refit in 2020, she is a well-maintained and capable semi-displacement yacht.
\nConstructed with a GRP hull with a 26â3â beam, she offers generous volume at 280 GT, accommodating up to 10 guests with 7 crew.
\nPowered for both performance and range, she reaches a maximum speed of 24 knots, cruises comfortably at 13 knots, and offers an impressive range of approximately 2,500 nautical miles, making her well suited for extended cruising.
\n02 Specifications
Basic boat information
- Builder WESTPORT
- Model 130
- Boat Name AVALINA
- Year 2003
- Condition Used
- Category Motor Yacht
- Construction GRP
Dimensions
- Overall Length 130'
- Beam 26' 3"
- Max. Draft 6' 6"
- State Rooms 5
03 Additional info
Main Specifications
Length Overall: 130 ft / 39.6 m Beam: 26' 3" ft / 8 m Draft: 6' 6" ft / 1.98 m Year Completed: 2003 Model Year: 2003 Refit: 2020 Type: Motor Yacht Tonnage: 280 GT Displacement: Semi Displacement Guests: 10 Crew: 7
Construction
- Builder: Westport
- Naval Architect: William Garden
- Interior Design/Stylist: Pacific Custom Interiors
- Hull Material: GRP
Speed & Capacities
- Maximum: 24 Knots
- Cruising: 13 Knots
- Range: 24 knots max. 2,500nm range @13kts/52gph/9,984 gallons
- Fuel: 9898.53 Gal / 37470 L
- Water: 1619.37 Gal / 6130 L
- Grey Water: 940 Gal / 3,560 L
- Black Water: 1,360 Gal / 5,150 L
- Lube Oil Capacity: 77 Gal / 291 L
Machinery
- Engine Type: 2 x MTU 12V 4000
- Horsepower: 2,734 Hp
- Engine Hours: 3,400 hours since W-6 major overhaul
- Engine Serial Numbers: 5262001231 Port, 5262001229 Starboard
- Generators: 2 x Kohler 65EOZD (@1,800 rpm)
- Port Generator Hours: 1,900 hours since overhaul
- Starboard Generator Hours: 1,900 hours since overhaul
- Shore power: ASEA 170â520V, 3âPhase, 60Hz
- Batteries: 3 x 12V sets, 6 x 24V sets
- Stabilizer: Naiad 521 with datum control for atâanchor stabilization
- Stabilizer at Anchor: Yes
- Steering System: Jastram PTO pumps from main engines
- Water Makers: Sea Recovery SRV 1500â2 AWM
- Bow Thruster: Wesmar Vortex V 2â16
- Fuel Separator and Filtration: RCI Technologies water separator
- Fresh Water System: Aquabox pump 110V
- Air Conditioning: Dometic 6 ton with 72 BTU
Communication & Navigational Equipment

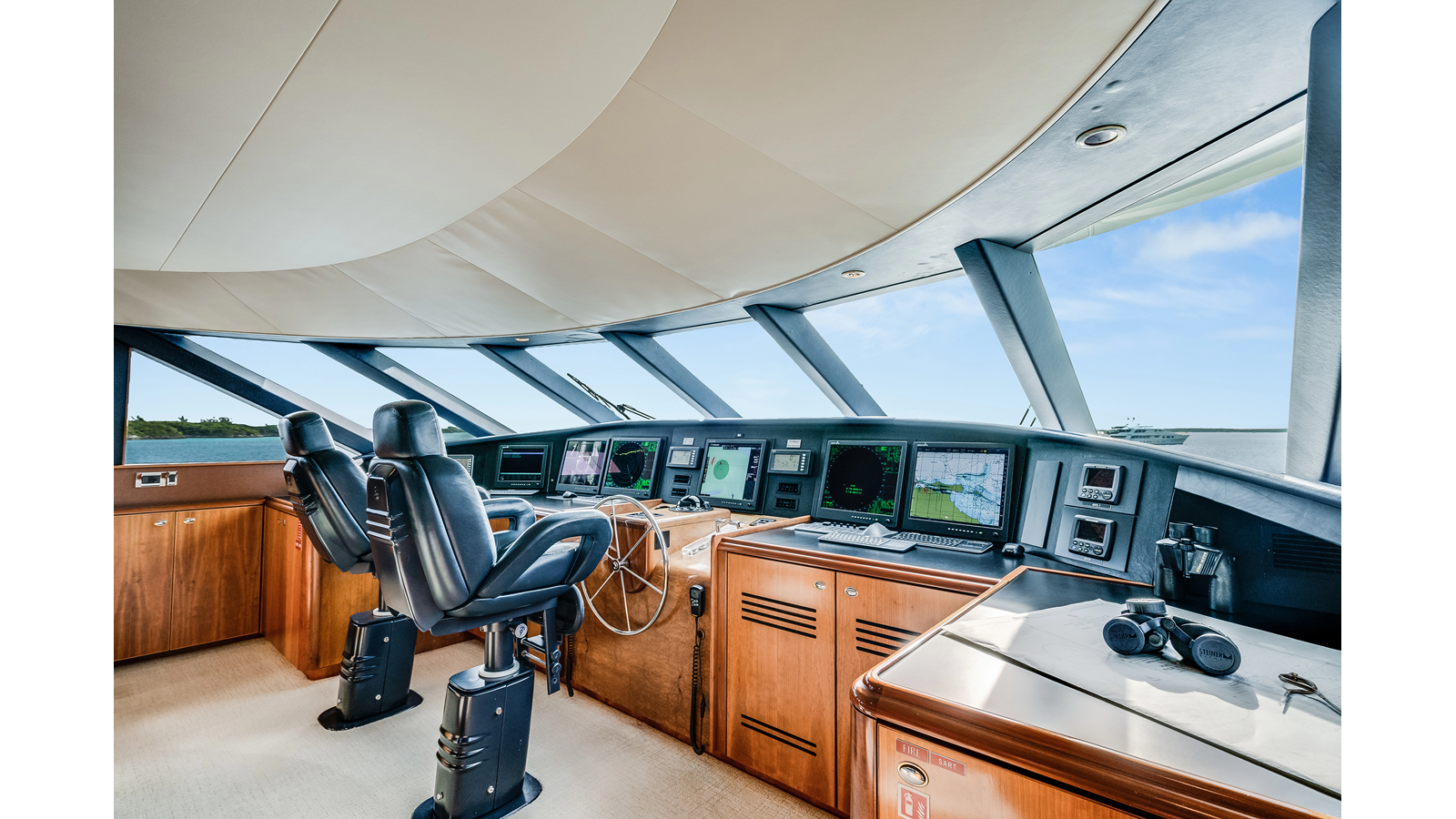

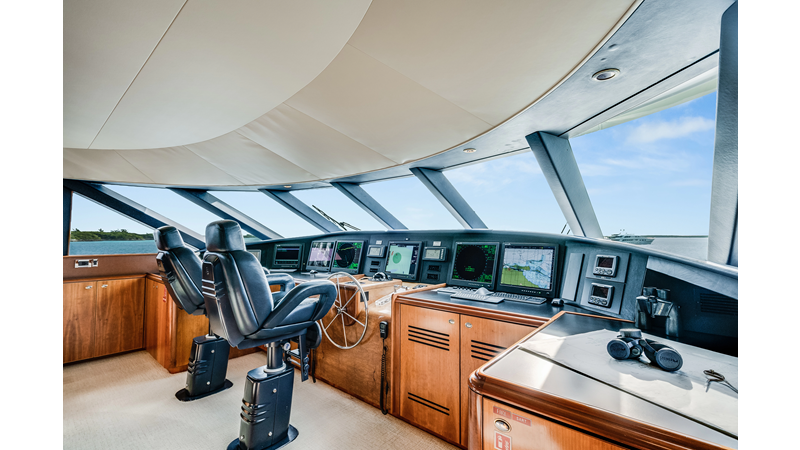

Pilothouse
- SAT COM: Fleet 33 Inmarsat
- Telephone System: Nortel 4 line
- VHF: Icom ICâM602
- Navtex: Navtex Furuno NX700
Navigation Systems
- Radar: Furuno 2115B Xâband, Furuno 2115 ARPA Xâband
- Gyrocompass: Sperry Marine Navigat X MK2
- Auto Pilot: Sperry Marine Naviplot 4000+
- Depth Sounder: Furuno RDâ33
- GPS: Furuno GPâ33, Bridge Dash
Entertainment Systems
- VSAT1: Yes
- iPads: Yes
Galley & Laundry Equipment

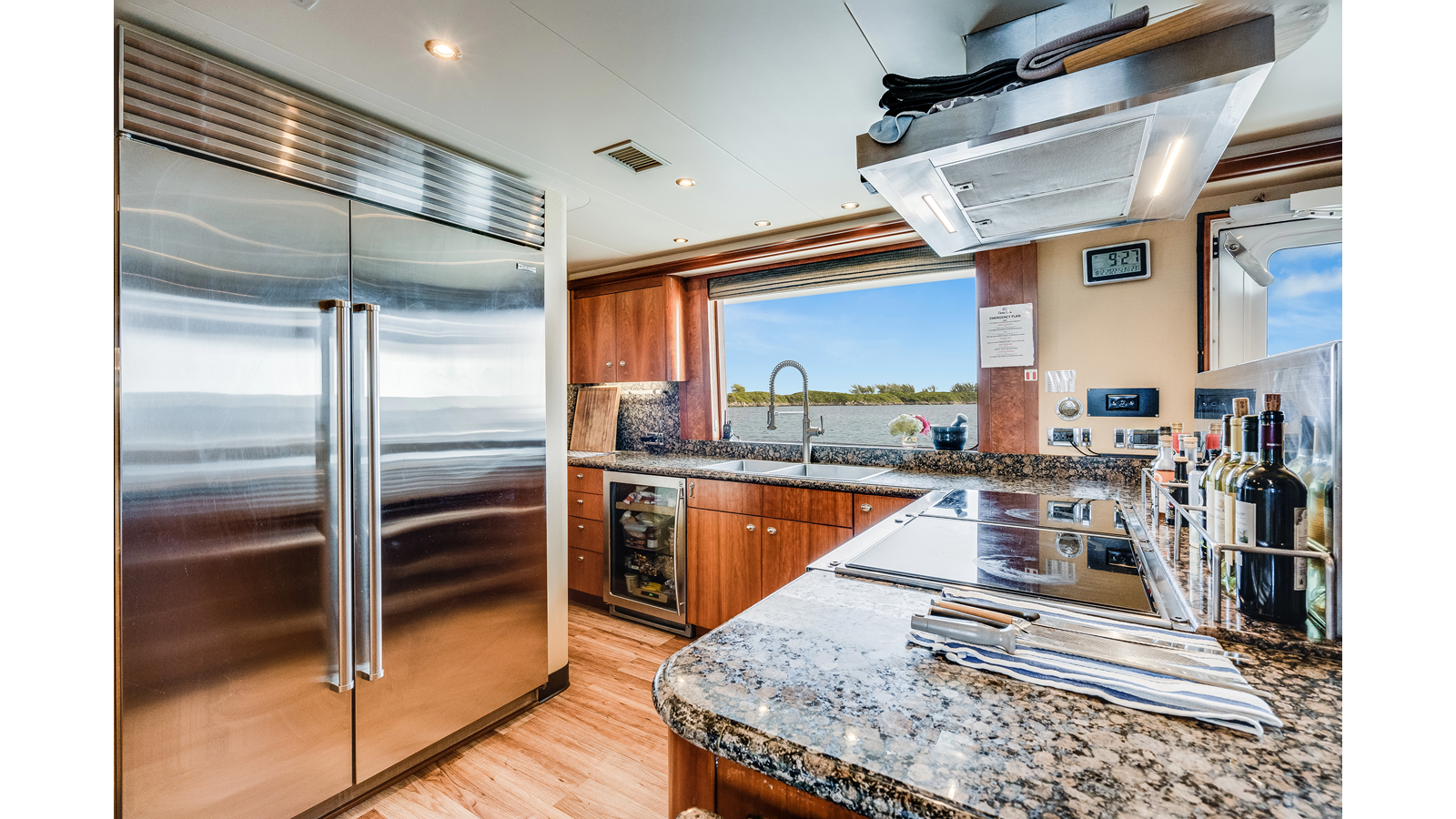

Main Galley Equipment
- Oven: 2 x Miele ovens
- Microwave: LG microwave
- Refrigerator: Kitchen Aid refrigerator
- Freezer: Kitchen Aid freezer
Crew Galley/Mess
- Fridge: Whirlpool refrigerator, Uline refrigerator
- Microwave: LG Microwave
Laundry
- Washing Machines: 2 x Miele Washing Machines
- Dryers: 2 x Miele clothes dryers
Deck Equipment
- Anchor Windlass: Maxwell VWC 6000
- Aft Warping Capstans:
- Anchors: 2 x Poole 600lb
- Anchor Chain: 2 x 400' 5/8"
- Main Tender Davits: Nautical Structures CC2000 EX156 with 909kg capacity
- Passarelle: Bensenzoni
Security, Fire Fighting & Safety Equipment
- CCTV System: Pelco CCTV
- Cameras: 9 x cameras
- Monitors: 4 x monitors
- Fire Control System: Custom Westport manufactured system
- Fire Extinguishers: 26 x portable fire extinguishers
- Alarms: Yes
- Life Rafts: 2 x Zodiac Solas 25 life rafts
- Life Rings: 4 x Life rings
- EPIRBS: 2 x EPIRBS
- Flares: 3 x Flares
- Medical Equipment: Medical bag
Upgrades
- Full exterior paint (2017)
- MegaFend- mooring fender system- refurbished/renewed all fender hooks. Added additional fender hooks, for use on the stern
- MegaFend- fenders- purchased various new fenders, for the yacht
- New Furuno System - GPS Gyro
- Added a Master closet divider, for charter purposes
- Repainted boat deck non-skid
- New tender purchase - 16â Walker Bay w/Honda motor (May 2025)
- Installed all-new exhaust system, for main engines and generators (May 2025)
- Remove and serviced hydraulic system- heat exchangers (3) (August 2025)
- Complete valve-job performed on both MTU- main engines (Mendol) (June 2025)
- Performed complete injector replacement on MTU- mains (2025)
- Installed new dishwasher, in stew pantry (galley)
