01 Description
02 Specifications
Basic boat information
- Builder CHRISTENSEN
- Boat Name SEA CLASS
- Year 1997
- Condition Used
- Category Motor Yacht
- Construction Fiberglass
Dimensions
- Overall Length 155'
- Beam 28'
- Max. Draft 8'
- State Rooms 6
03 Additional info
Main Description
Key Features
- Highly sought after Christensen motor yacht received a top to bottom refit in 2018 and has benefited from continual upgrades and regular maintenance since
- Fresh hull paint in 2021 and all new superstructure paint in 2022
- New interior in 2023
- Factory rebuild of engines in 2024
- Successful and established charter history

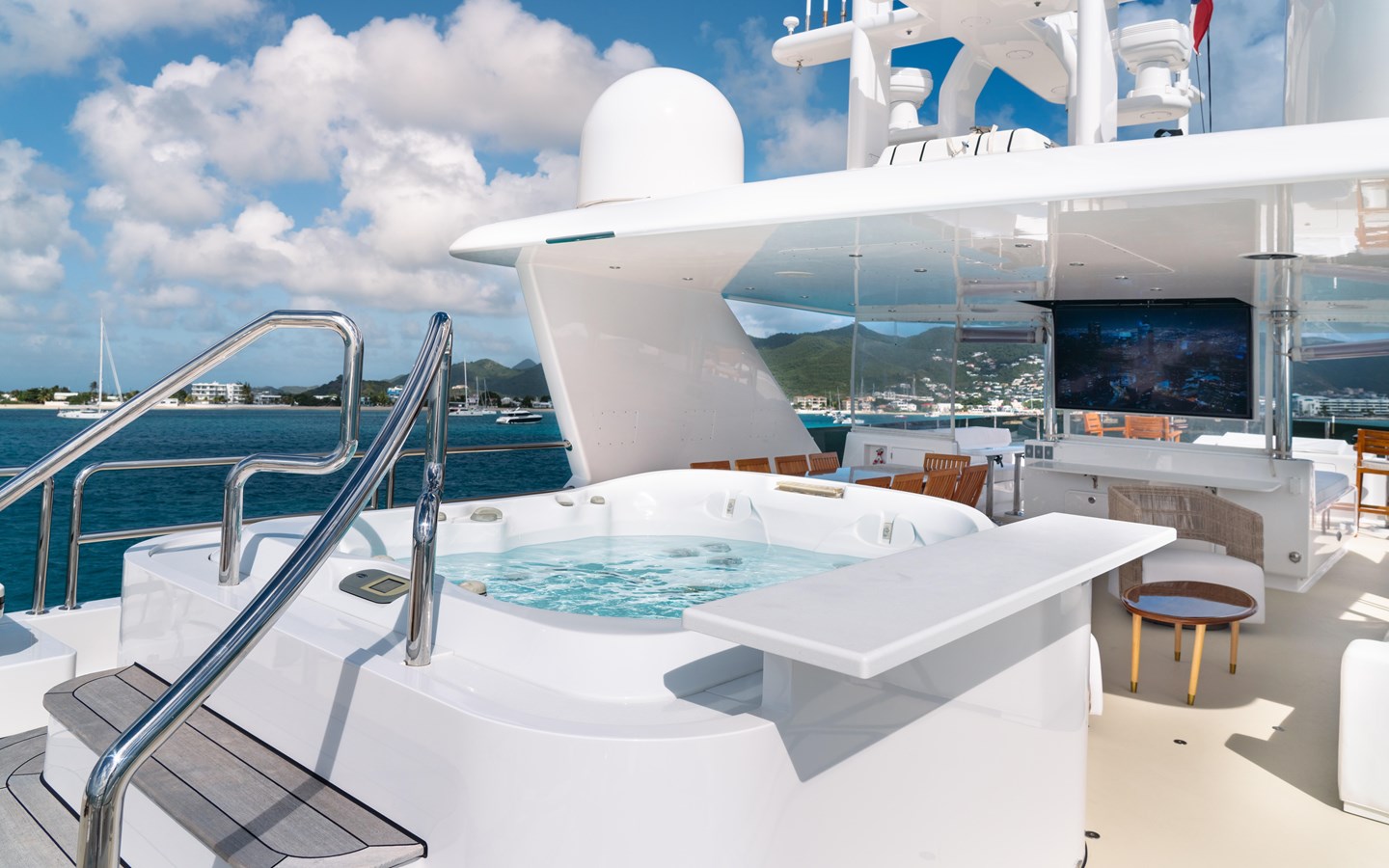

- Expansive Sundeck complete with shade sails, four-person sun bed, loungers, comfortable helm seats facing the bow, BBQ and Jacuzzi
- Large on deck full beam master suite with his and hers ensuite and full-size soaking tub. Additional bonus cabin on main deck perfectly suited for caregiver or children.
- Bright Sky lounge and bar with large windows and socially designed upper aft deck complete with wet bar and wrap around teak decks
- Tri-deck with wide staircase leading to oversized swim platform
- Measures just below 500 GT
- Transatlantic range

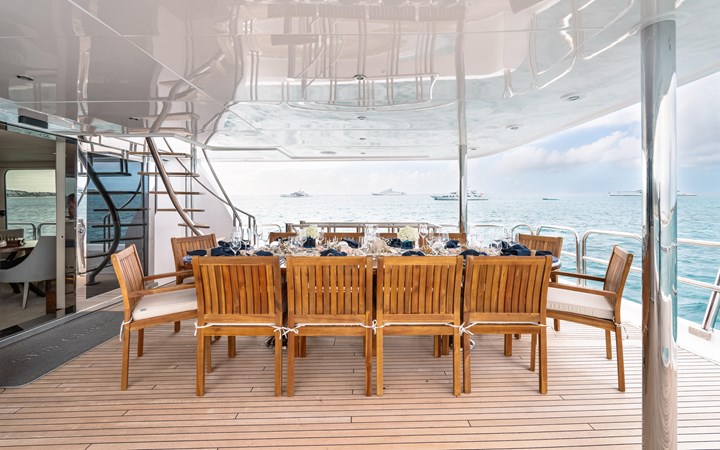

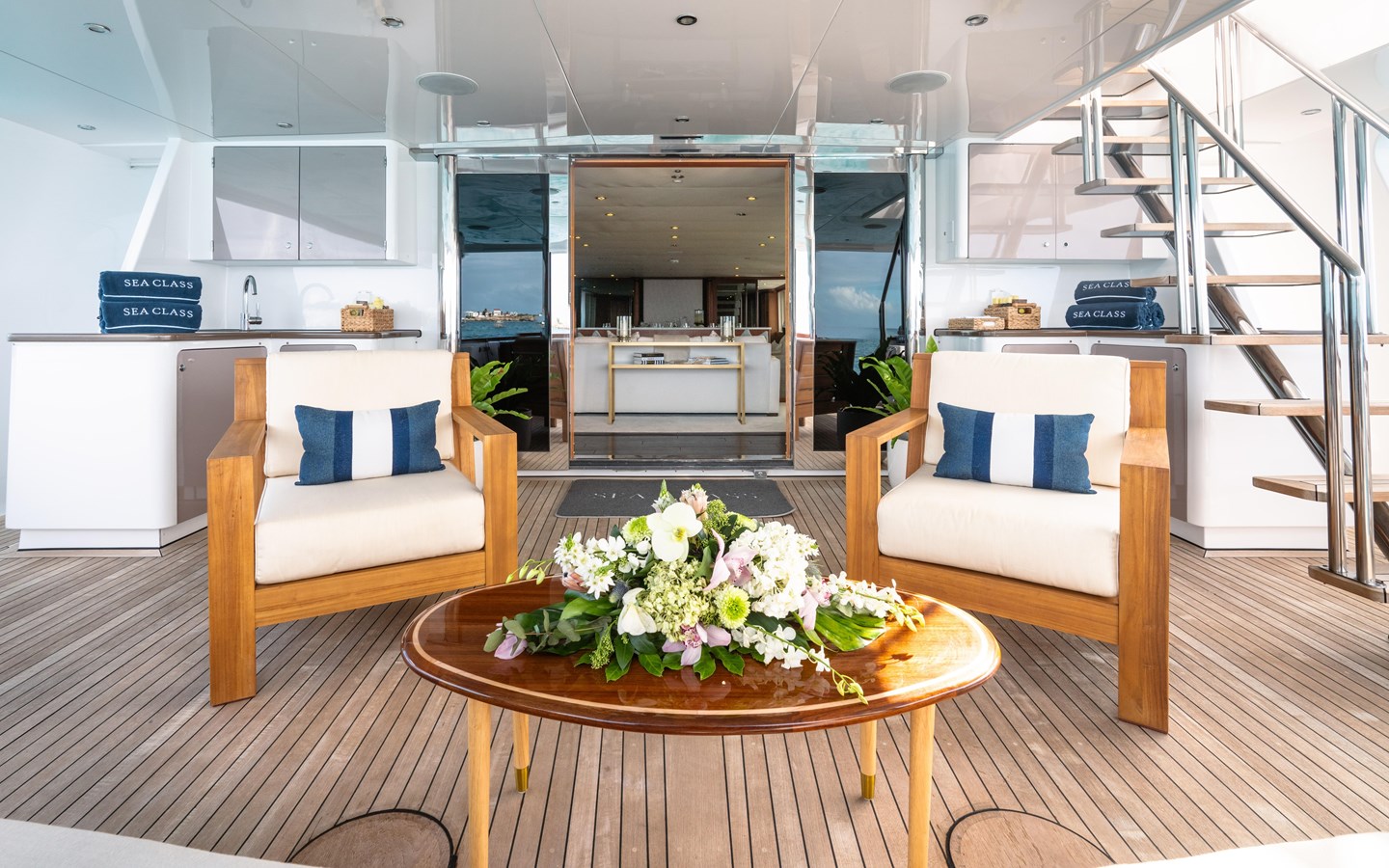

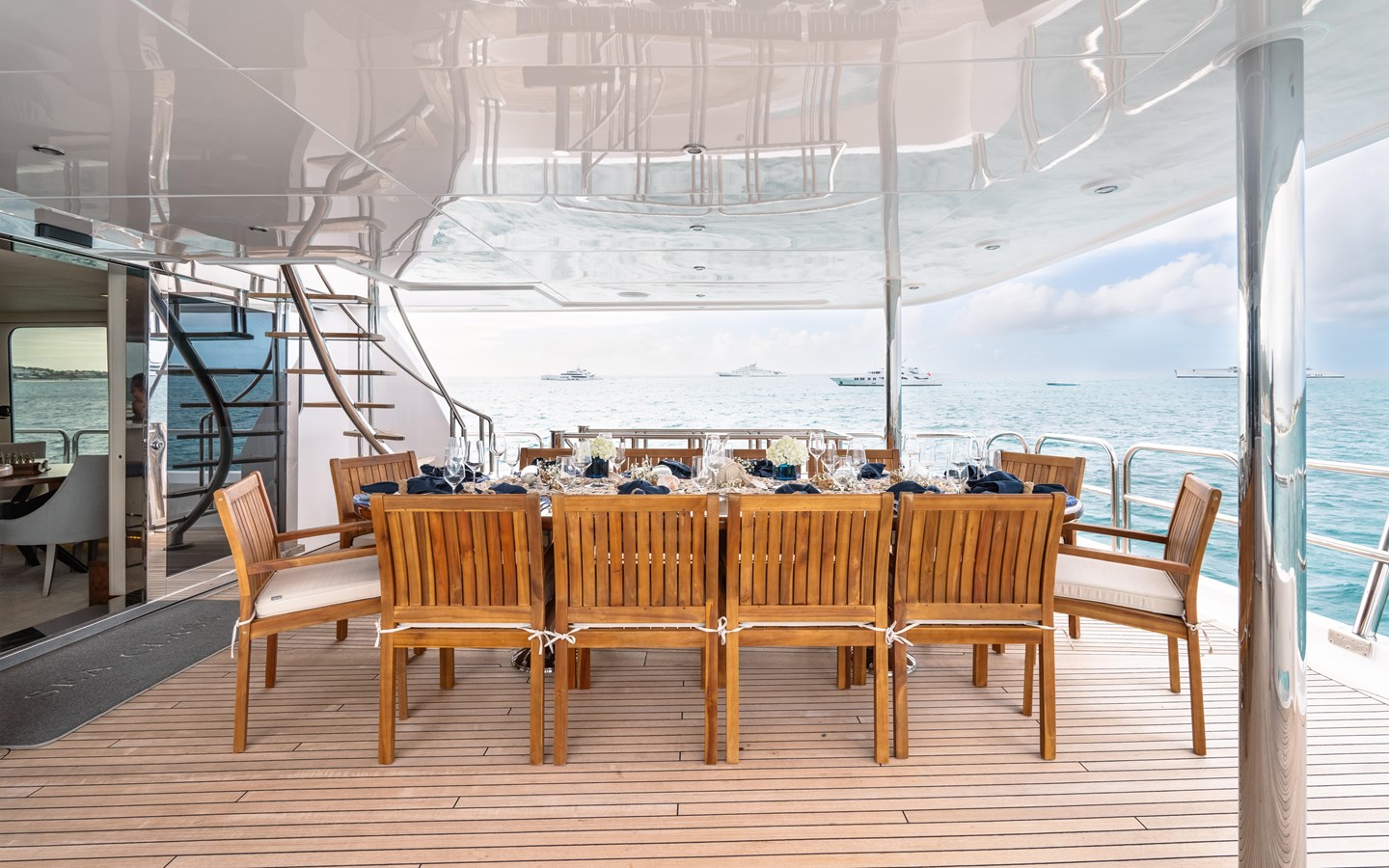

Aft Deck

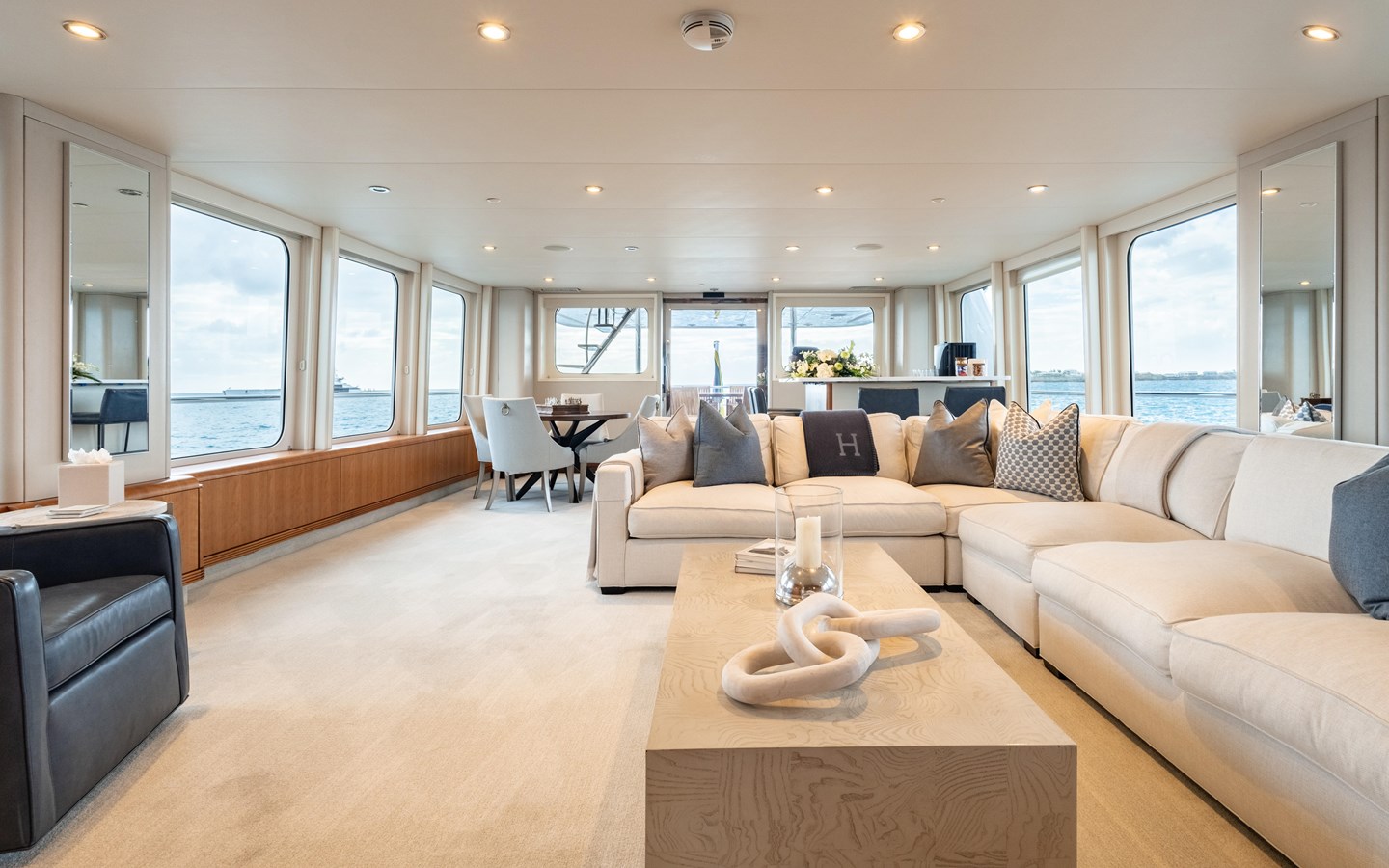

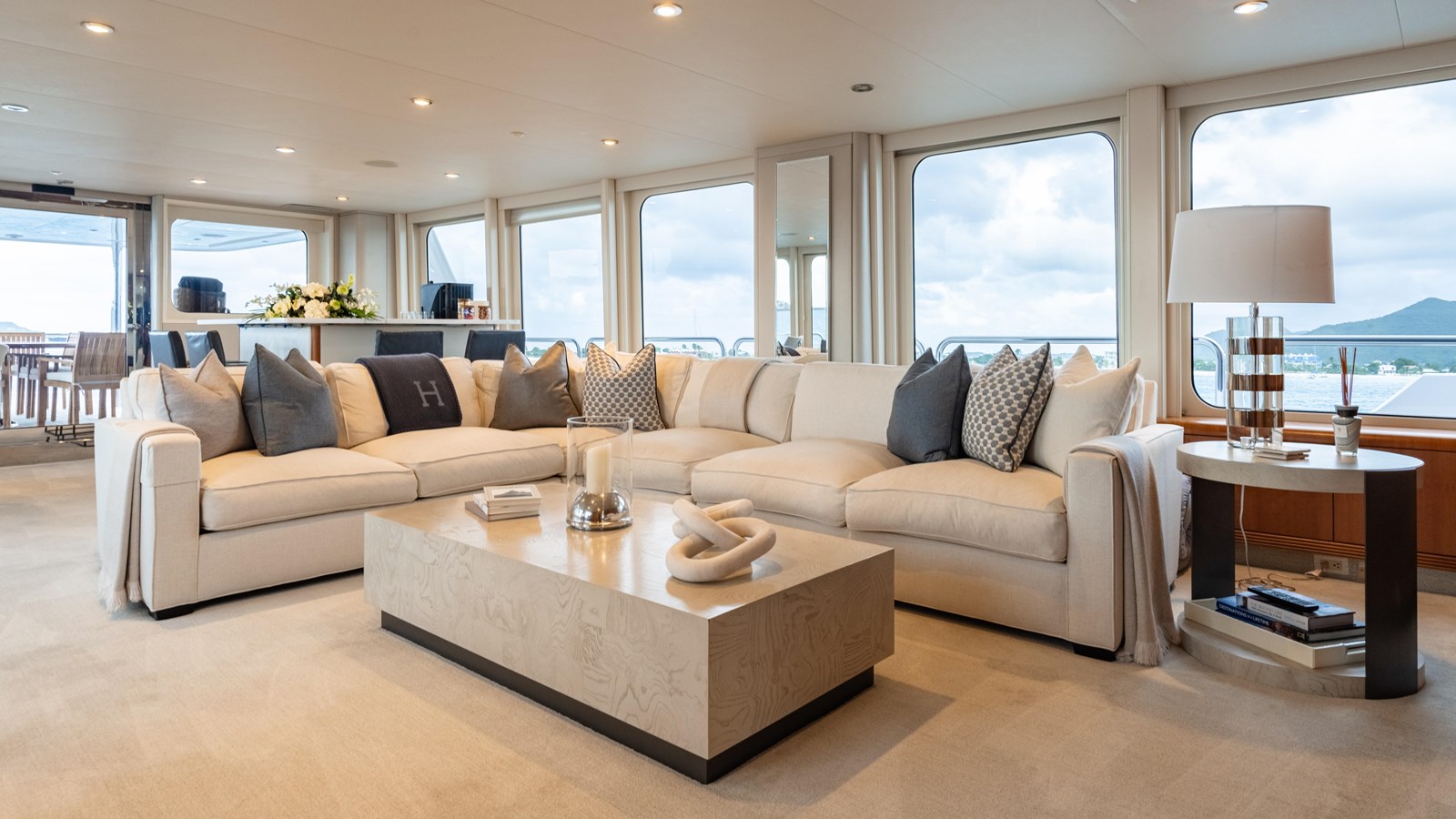

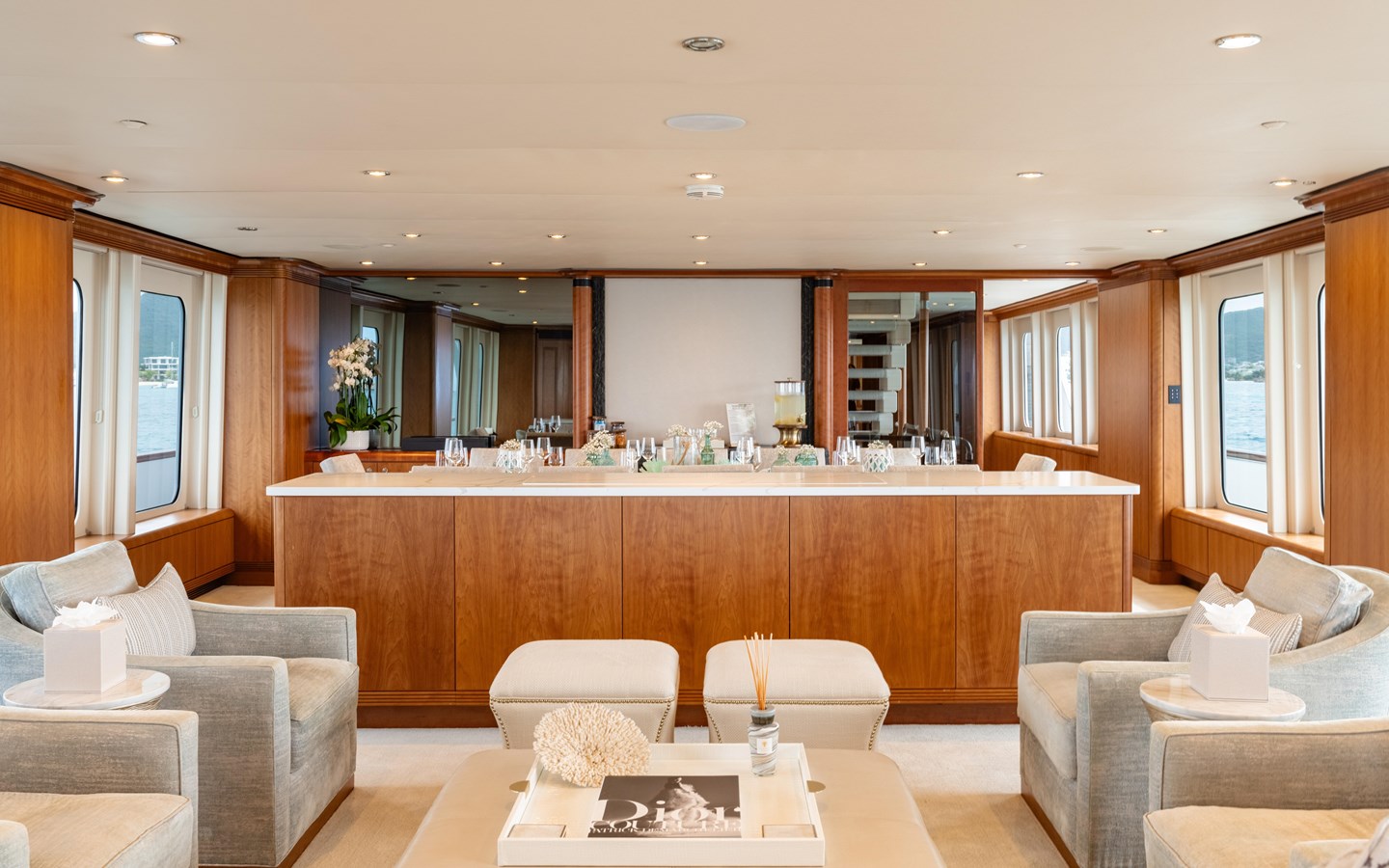

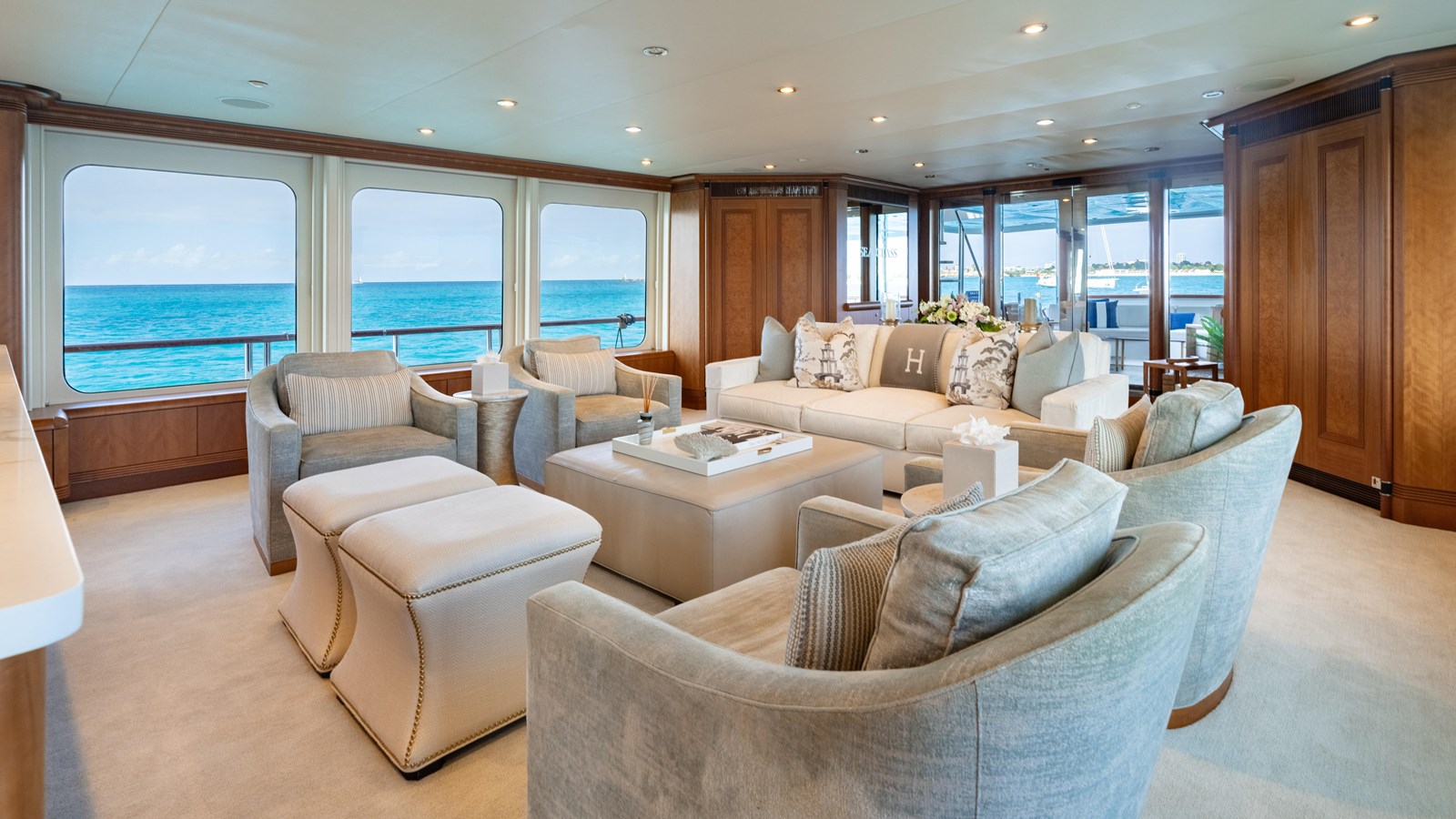

Main Salon

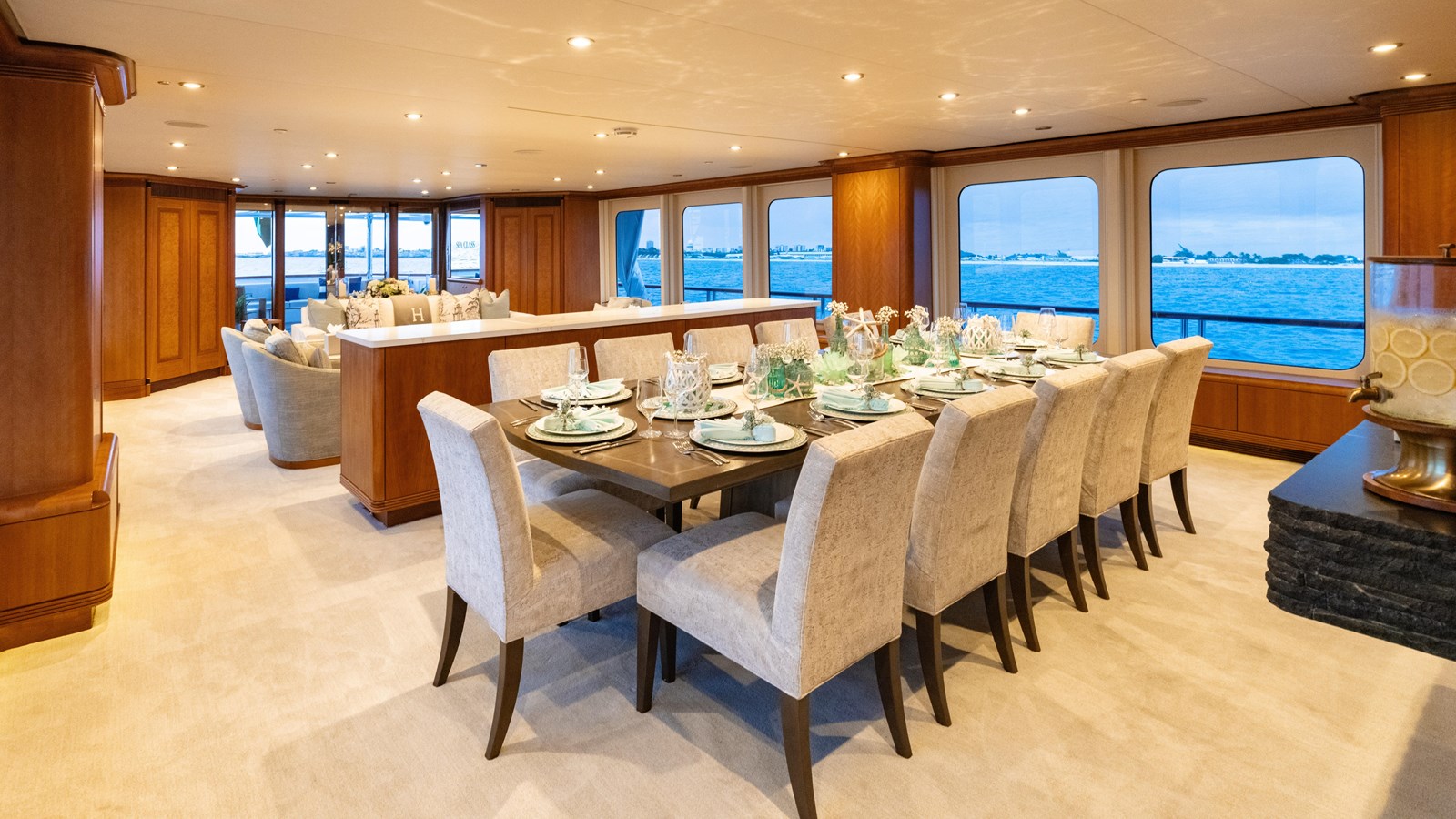

Dining Room
Day Heads

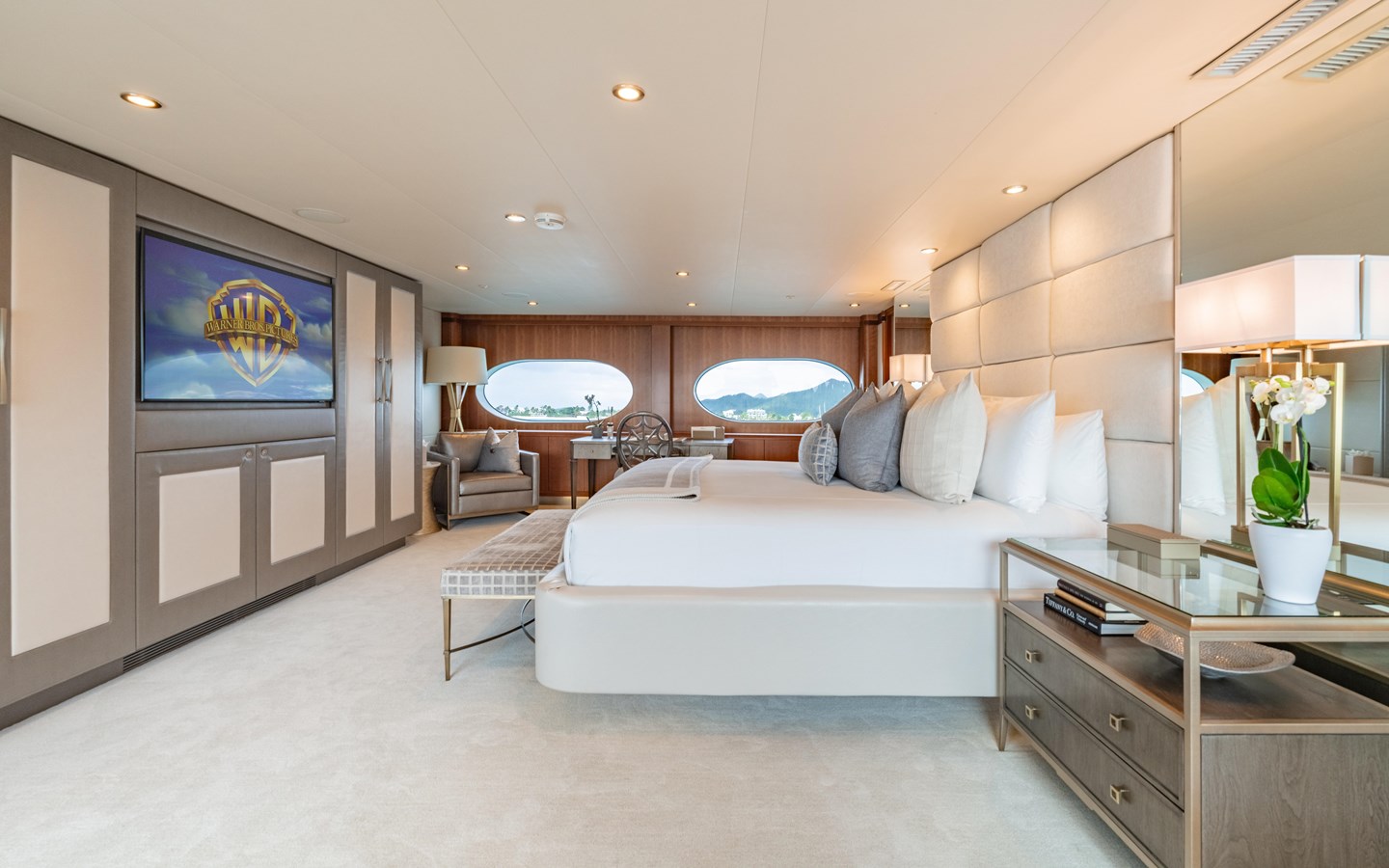

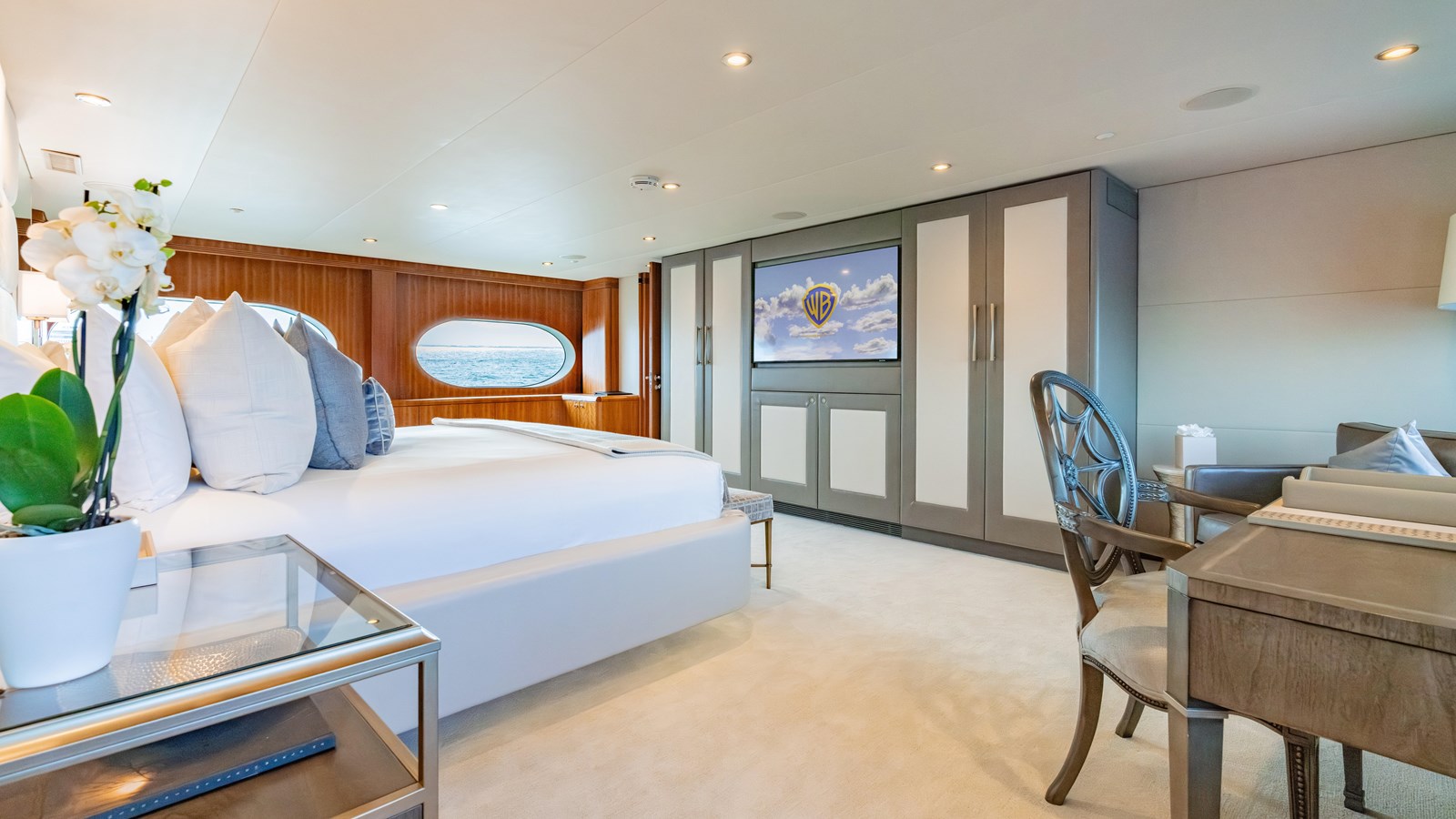

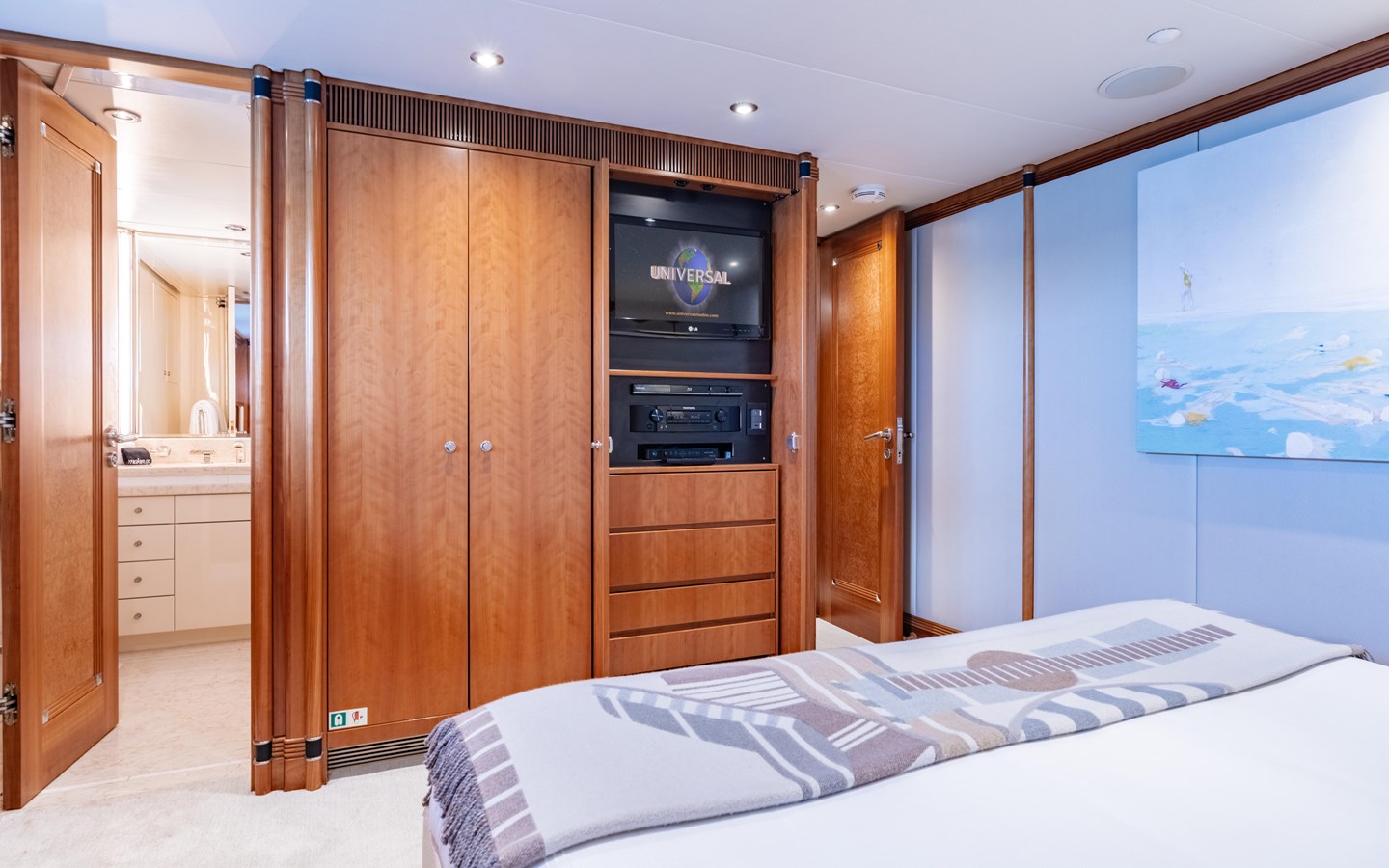

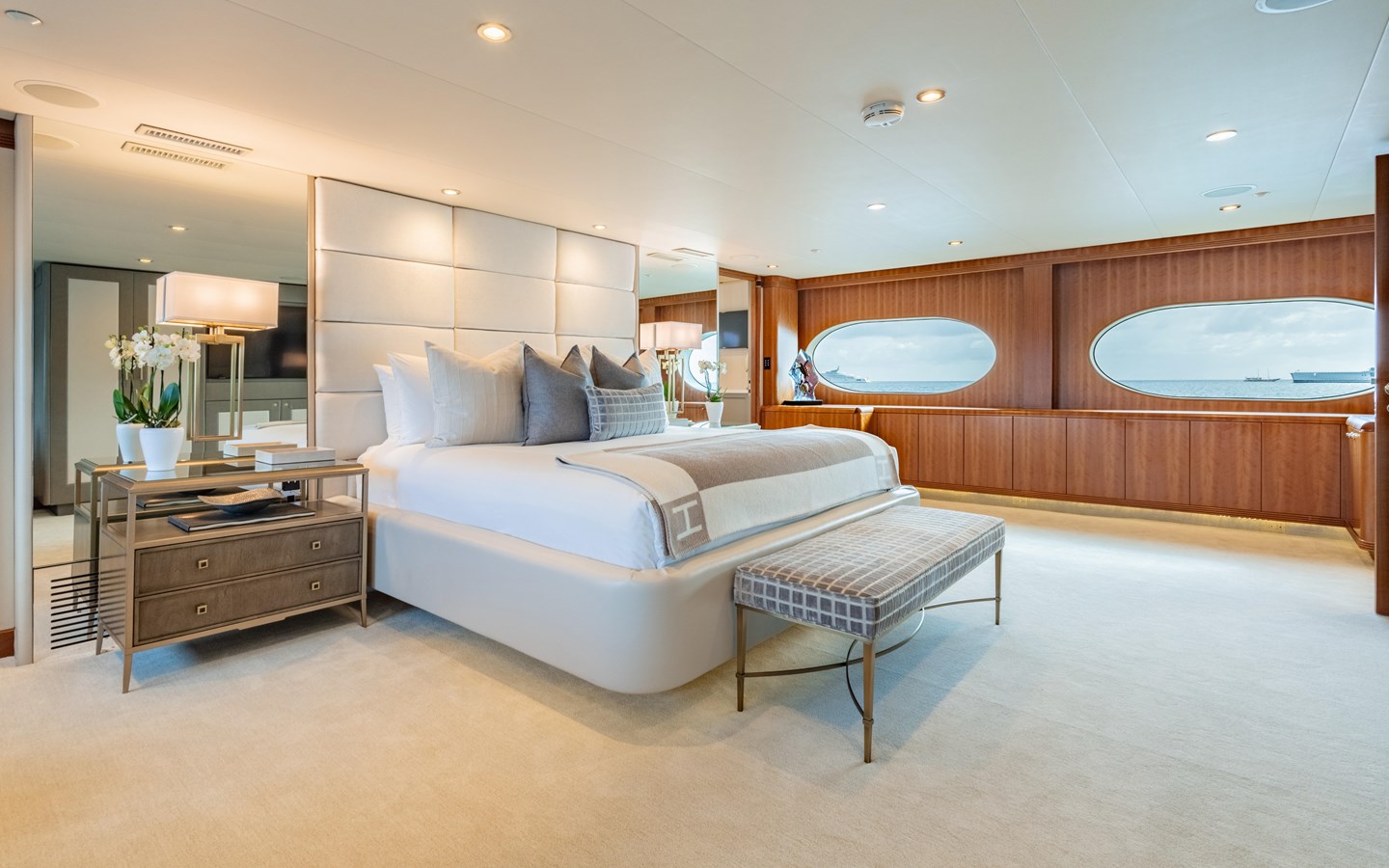

Master Stateroom
- 55” Samsung Smart TV
- Samsung Blueray DVD player
- Marantz Receiver NR1603
- Crestron Handheld Remote installed 2021
- Directv HD Receiver
- Directv Genie
- PLEX Media System
- Crestron MC4 4 series Control System installed 2021
- Apple TV 4K Media player installed 2021
- PME Bluetooth 4.0 receiver module installed 2021

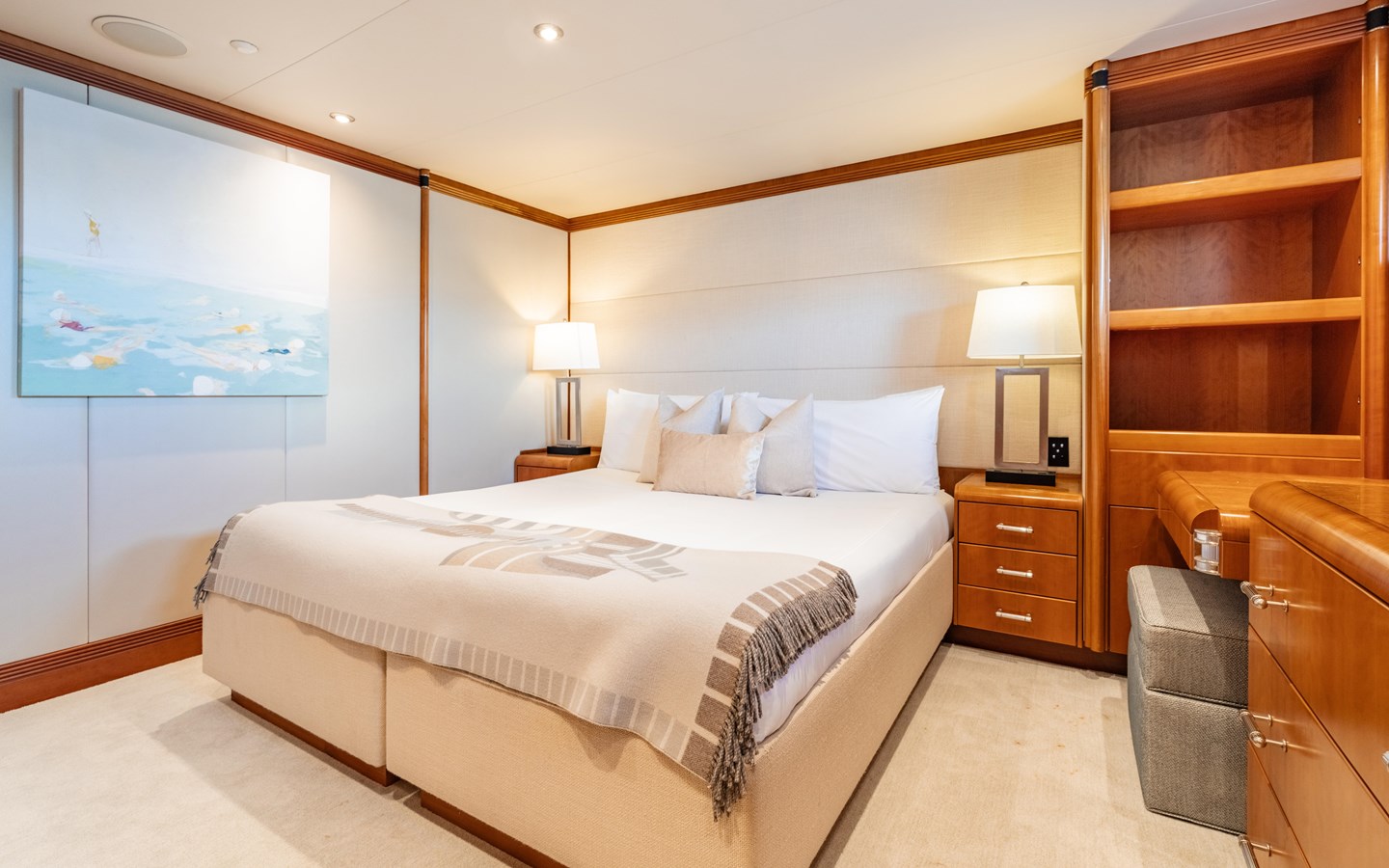

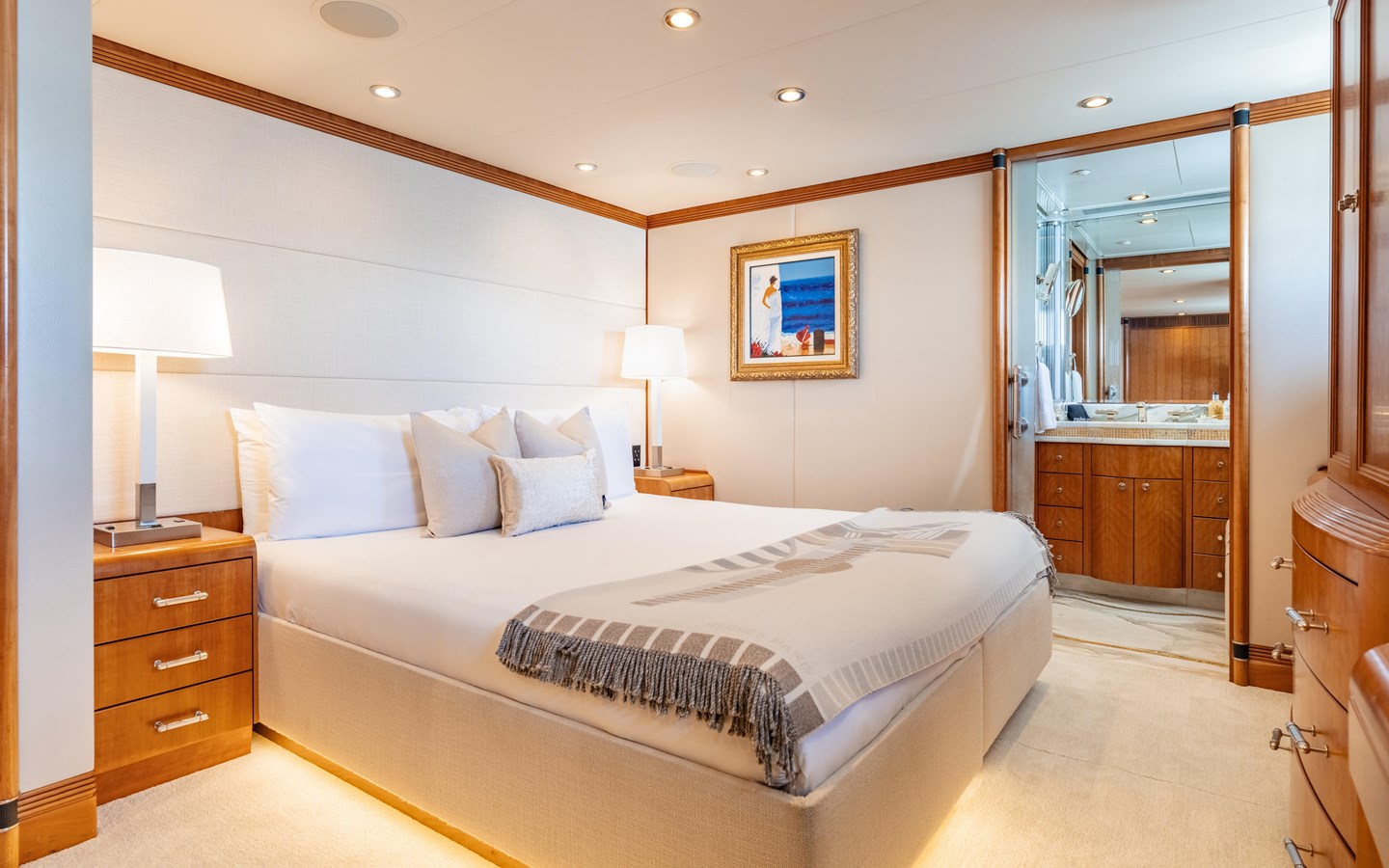

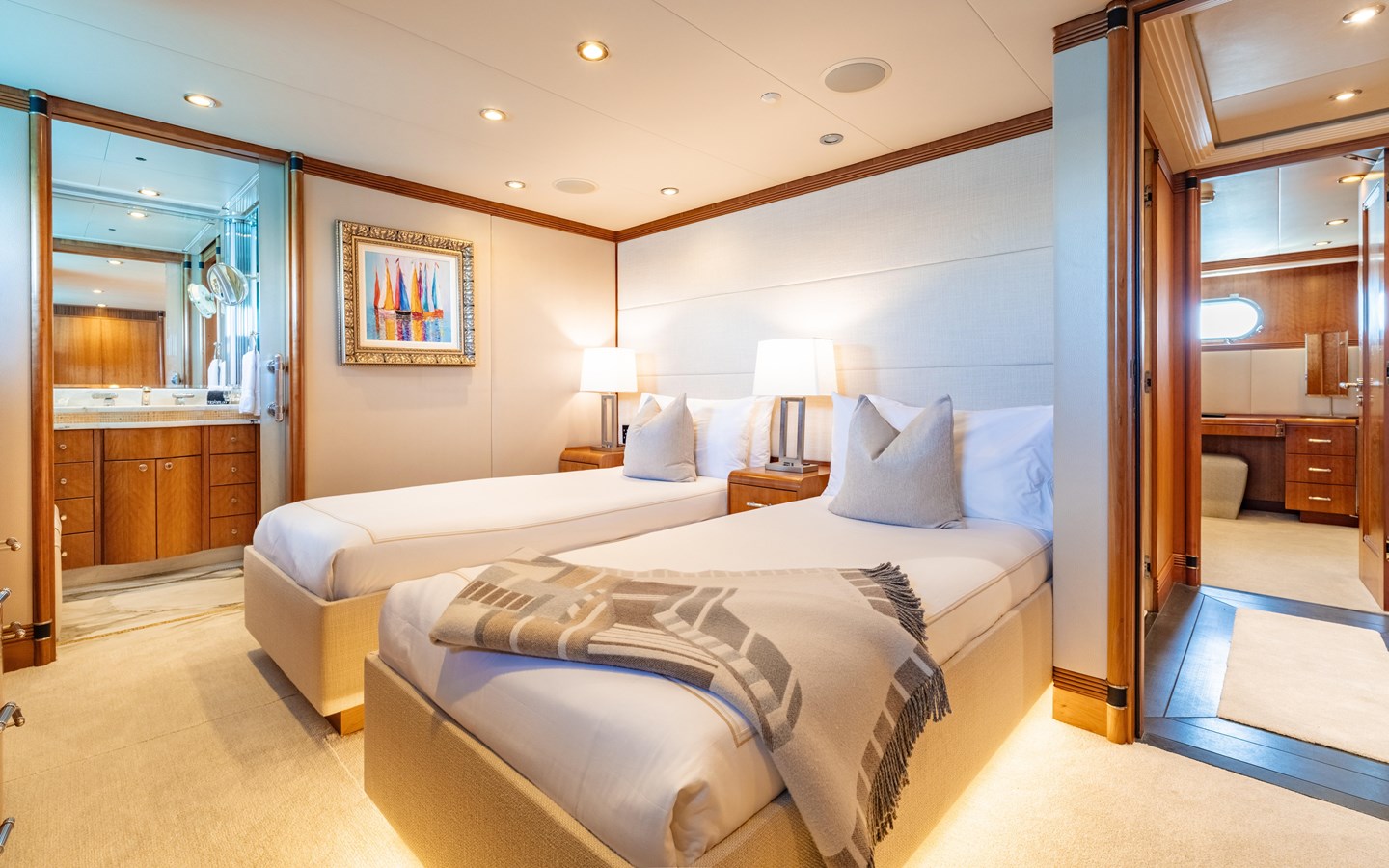

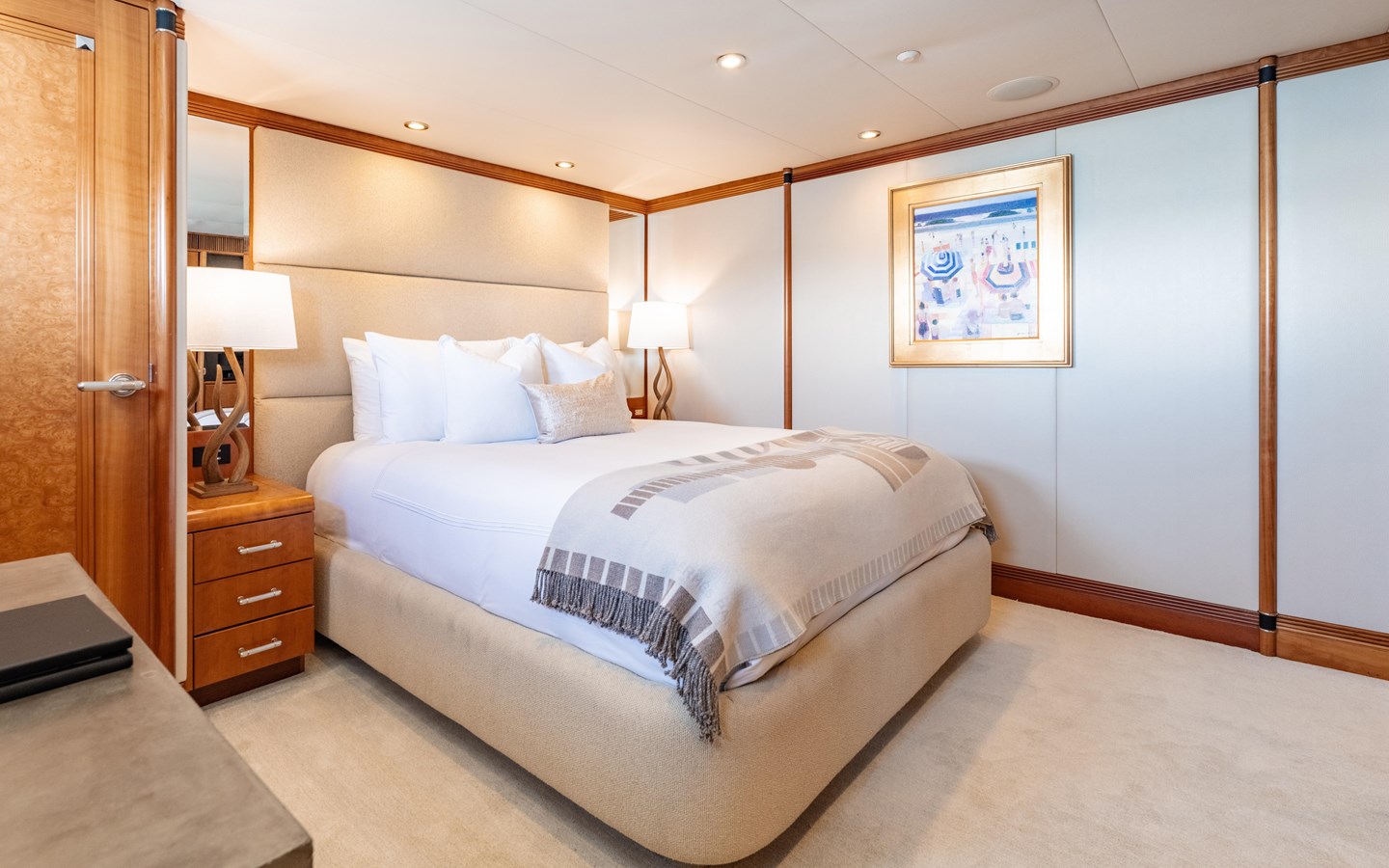

Guest Staterooms (4)
- 32” Samsung TV
- Samsung Blueray DVD player
- AV Marantz Receiver NR1403
- Directv HD DVR Receiver
- Crestron Remote Handheld installed 2021
- PLEX Media System
- 2 Polk Audio Speakers
- Crestron MC4 4 series Control System installed 2021
- Apple TV 4K Media player installed 2021
Main Deck Cabin

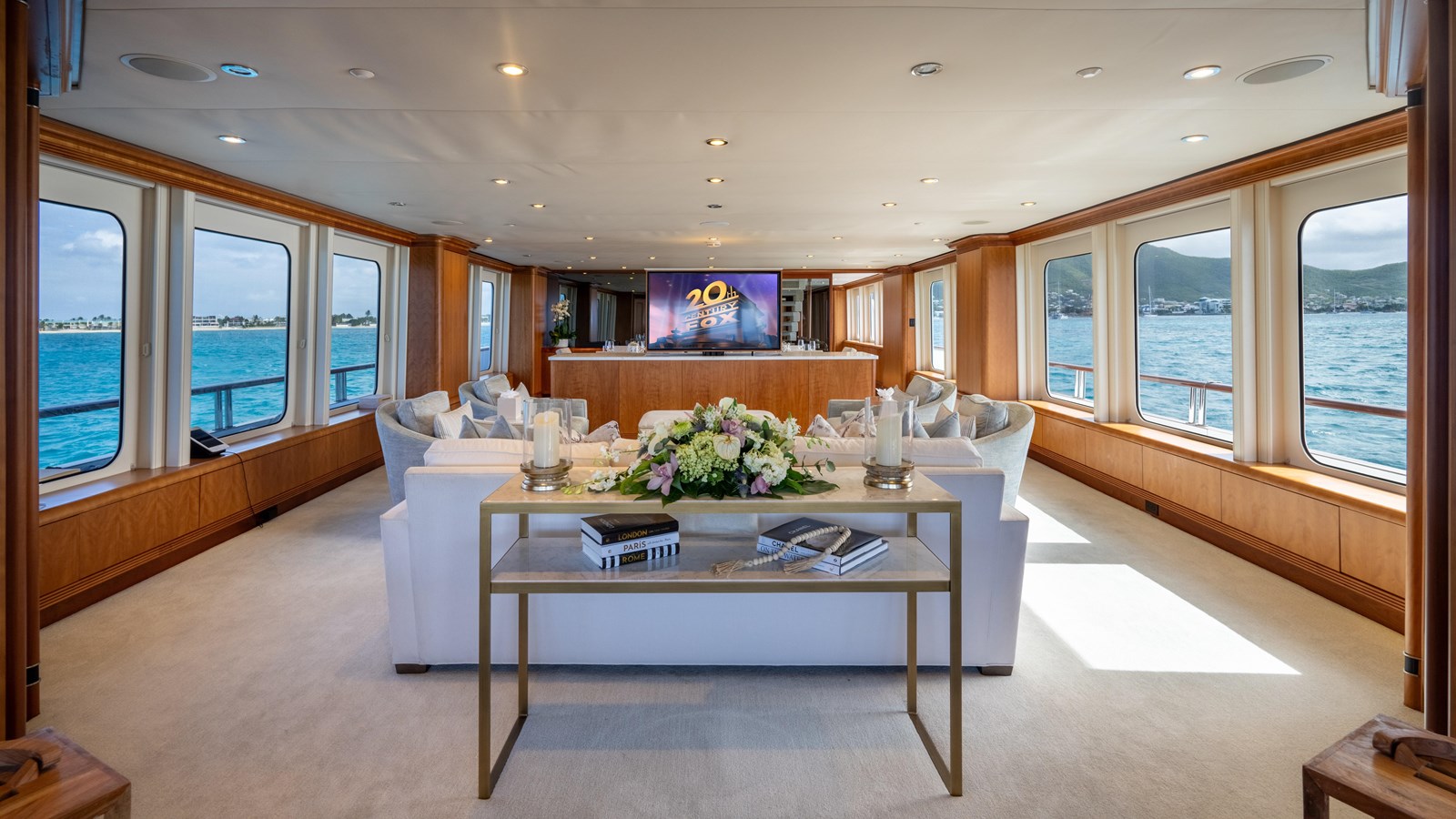

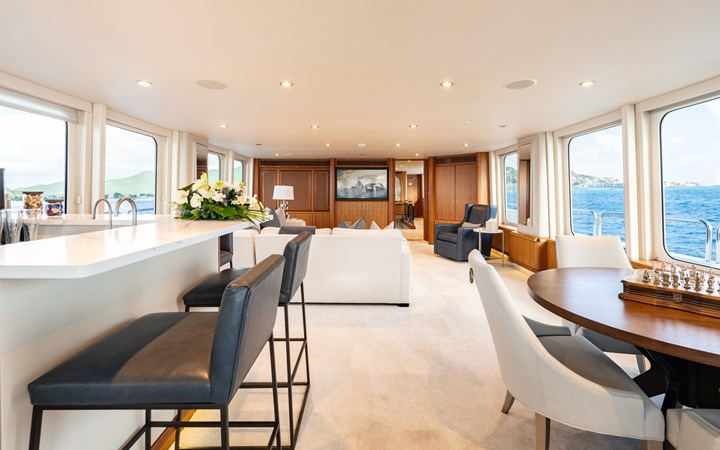

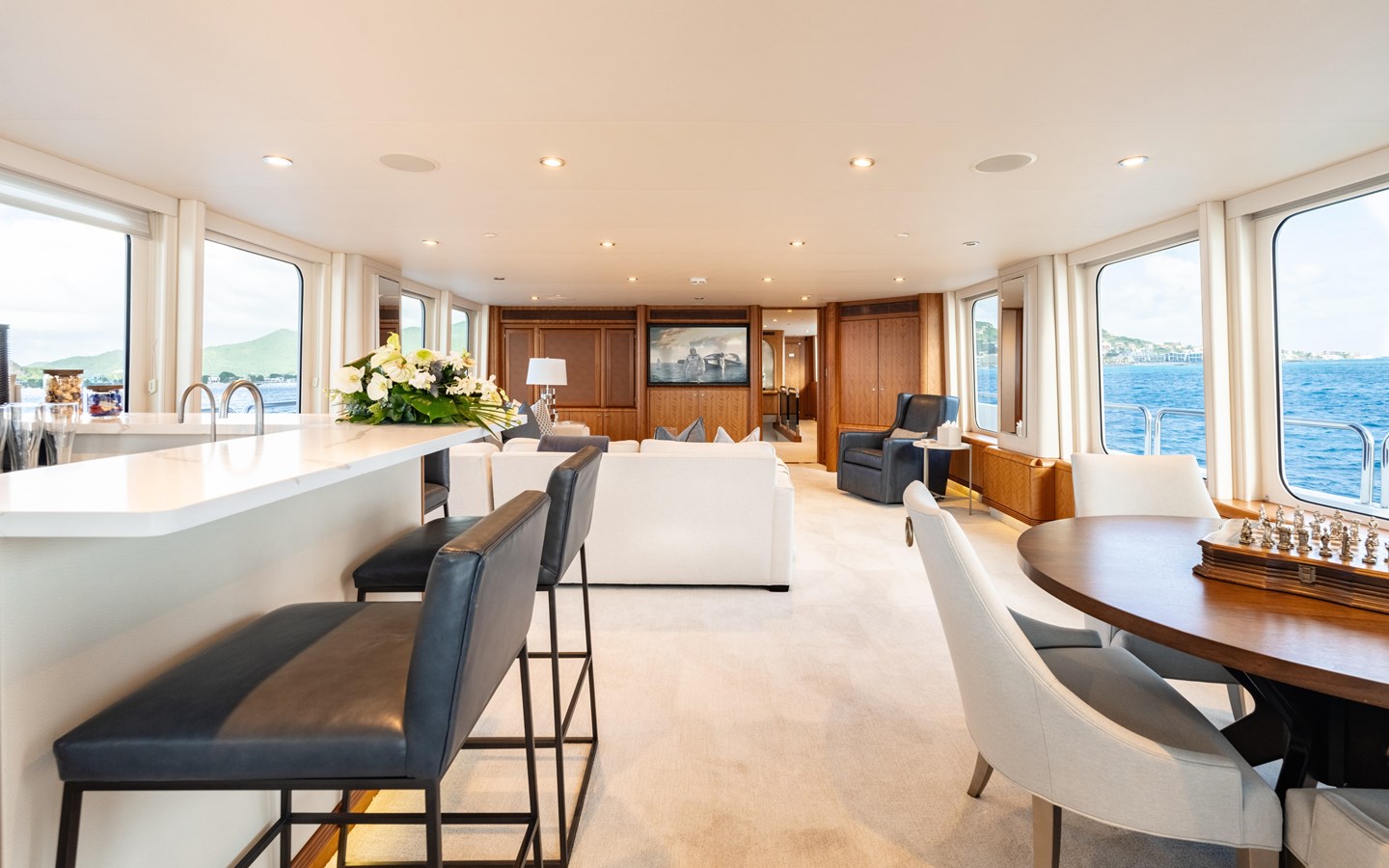

Skylounge
- 55” Samsung
- Smart TV
- Marantz Receiver NR1403
- Crestron Handheld Remote
- Directv HD Receiver
- Samsung Blue Ray
- DVD Player
- PME Bluetooth 4.0 receiver module installed 2021
- APC SmartUPS C1500
- Pyle PT504 Digital tuner
- Intellian Antenna Control Unit
- TrippLite
- 5 Polk Audio Speakers
- PLEX Media System
- Crestron 7" TSW-760 LCD touch screen control panel installed 2021
- Apple TV 4K Media player installed 2021

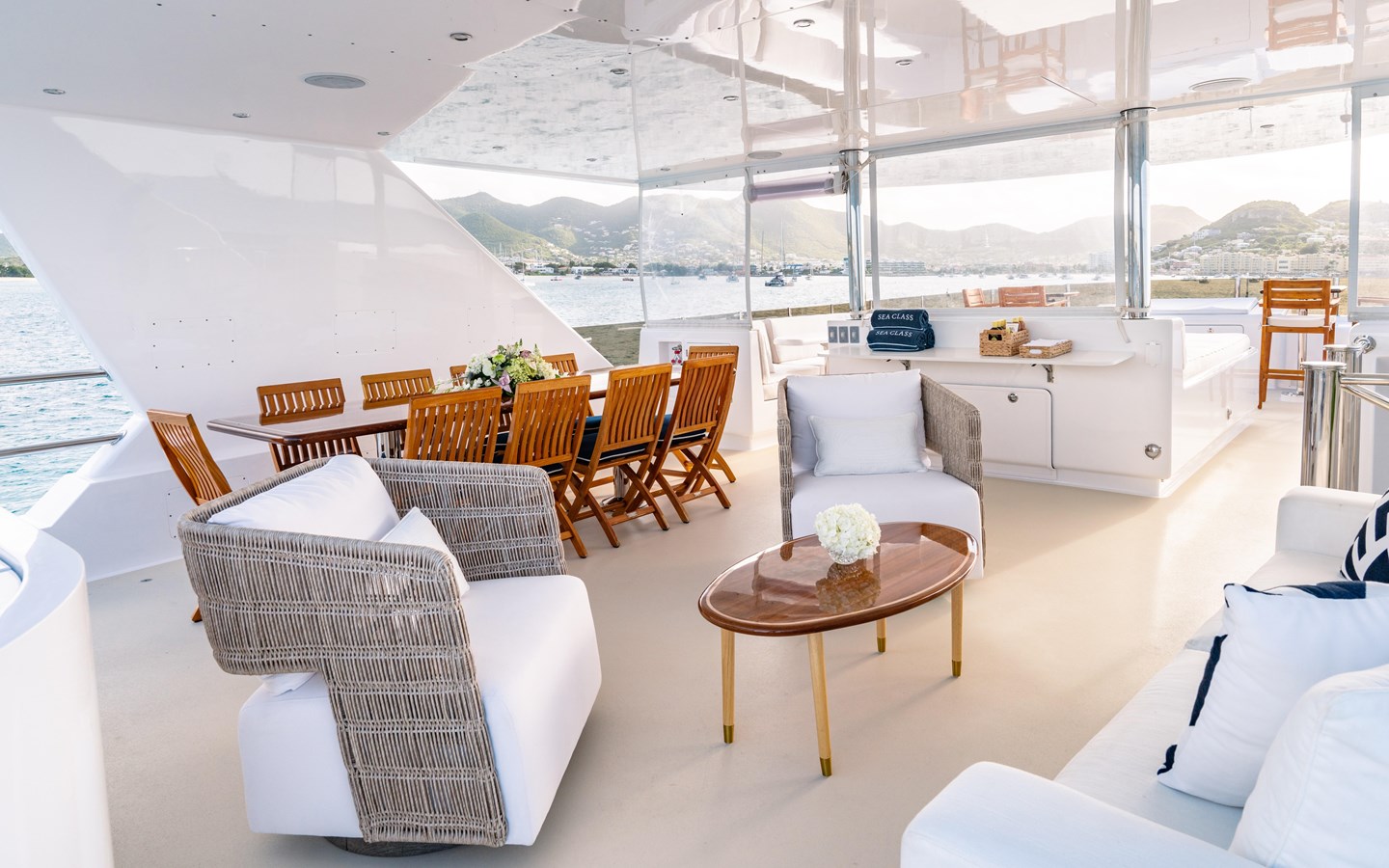

Aft Bridge Deck
Bridge Cabin
Bridge

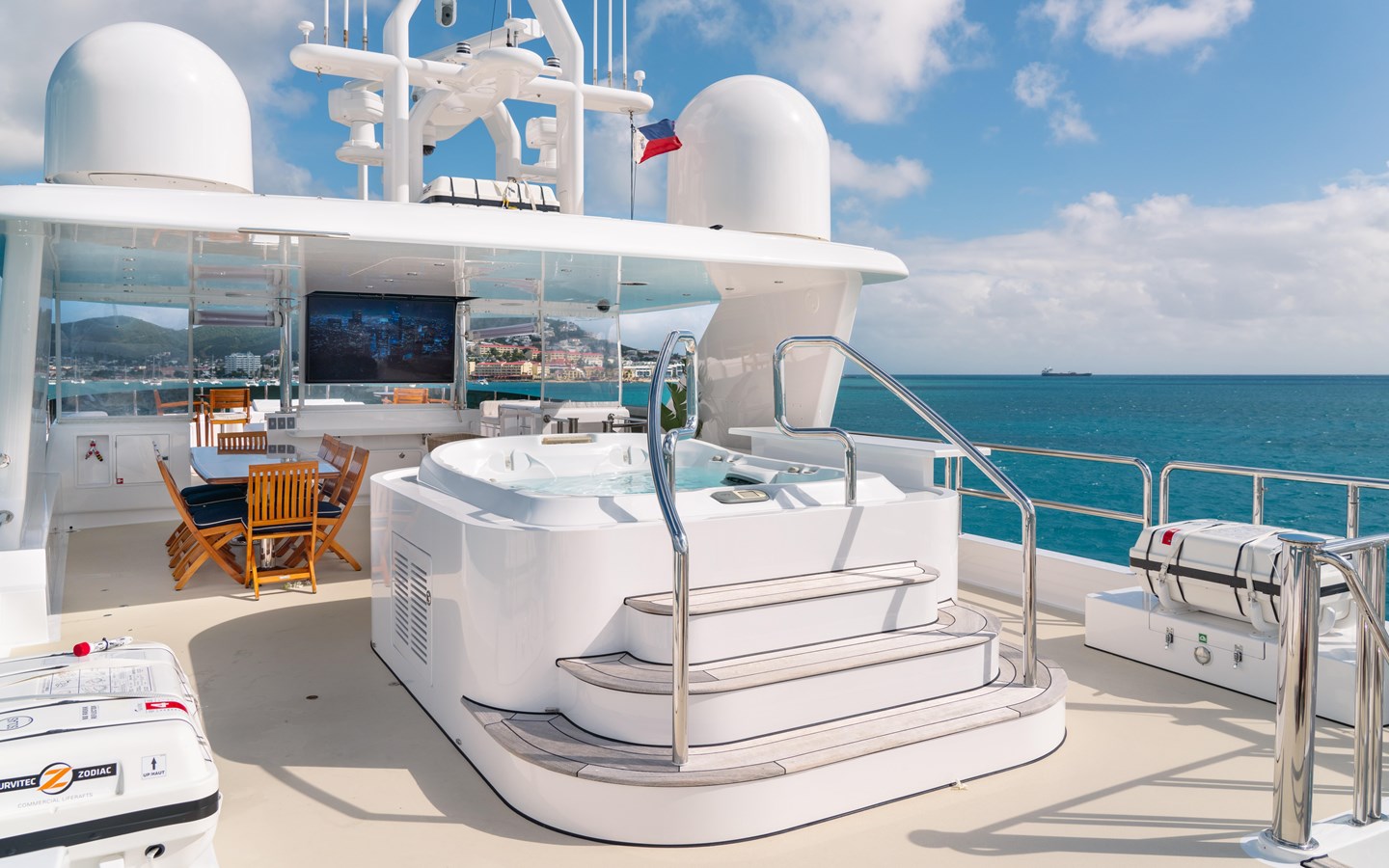

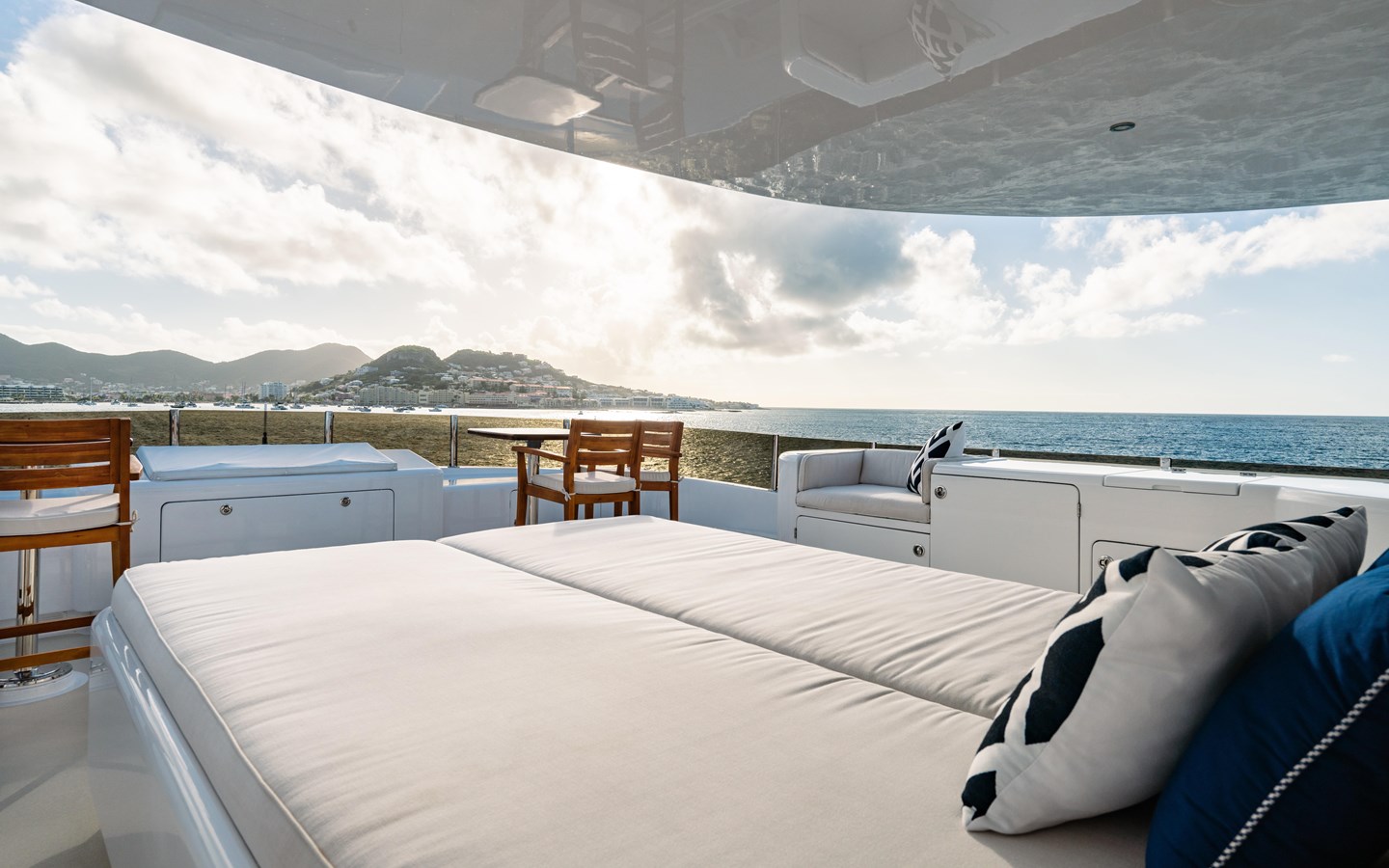

Sundeck
Pantry
Crew
- Panasonic Phone KXT7453
- 32” Sony TV
- (3) 26” LG TVs
- HP Officejet Pro 8600 Plus Printer/Scanner
- ICOM VHF radio
- Uline icemaker
- SubZero mini fridge
- GE microwave
- Elbex Switcher EXS 126
- Marantz AV Receiver NR1605
- Samsung Blueray DVD player
- Furuno depth sounder
- PLEX Media System
- Furuno depth sounder
- Crestron MC4 4 series Control System installed 2021
- Apple TV 4K Media player installed 2021
- PME Bluetooth 4.0 receiver module installed 2021
Laundry
Engine Room
Lazarette
Galley
- 2 Kitchen Aid food warmers
- 2 Scotsman Icemakers
- 4 Subzero drawer fridge 700 BR
- 2 Subzero drawer freezers
- 2 Miele Dishwashers
- 1 Viking Induction Cooktop and 1 Kitchen aid cooktop (Nov 2019)
- WOLF griddle SubZero Refrigerator GE GE Microwave
- 2 Kitchen Aid Ovens (Nov 2019)
- Sub-Zero refrigerator
Electronics
- (2) Furuno radar antennas
- Intellian S6HD for Sat TV
- Intellian 80 cm Vsat for internet
- Elbex CCTV Camera
- HD Satellite TV System- Seatel 100TVHD antenna & sailer 900 Ka Band installed in 2021
- Boardband Viasat MAS 500 network installed in 2021
- (1) 12-person liferaft Survivetec Zodiac mounted centerline aft of mast, March 2018
- UMT Davit
- (2) 12-passenger Life Rafts Survitec Zodiac
- (4) Sea Doo Jet skis
- Uline small refrigerator U1175RS
- Russound Audio Control
- (6) Polk Audio Speakers
- ACR Sart
- (3) Lebroc Helm Chairs
- ZF Electronic Control for Main Engines
- ACR Searchlights model 600
- Furuno Navnet 3D
- ICOM VHF radio ICM604
- Simrad AP 70 AutoPilot
- (2) Furuno Multi Screens F150
- (2) Aetna Digital Main Engine Tacometers
- Simrad Remote Steering FU80
- (3) Air Horns
- EPIRB McMurdo Model E5 406 Battery
- Fire Hose
- 27’ Custom FunAir Slide, June 2018
- FunAir 40’ Seapool Beach Club, June 2018
- 15’ Sealever Rib Tender, September 2019
- (2) Muir Windlasses 10/mpm model V10000 HYD 185 14
- Atlas Davit 1600 rated 1200 lbs
- Ship's bell
- (2) Anchors 450 lbs
- Port & starboard chain 450' 3/4"
- (6) Deck Cleats
- 2 Charge Master Battery Chargers model 24403
- Port & Starboard house battery banks
- 2 Air make up units
- Port & Starboard ZF Electronic Engine Controls
- 2 Furuno F150 “Multi” Indicator (depth/wind/temp)
- 2 Simrad FU80 Steering Control
- 2 ABTTrac Bow Thruster Control
- 4 Port & Starboard Aetna Digital Main Engine RPM indicators
- Fire pump Start/Stop
- Simrad MXGIO GPS Differential Plotter
- 2 15” Hattland Screen
- 2 19” Hattland Screen
- 2 24” Hattland Screen
- 1 Panasonic KX T7 453 PBX Telephone
- 1 Furuno Navnet 3D
- 2 Extron Video Switchers
- Furuno FA150 AIS
- FLIR NightSight Camera
- Furuno Navtex NX 700
- Furuno RCU014 ARPA Radar
- Furuno F150 Multi Screen
- Furuno F150 Wind Screen
- ZF Main Engine Electronic Control
- ICOM VHF ICM604
- ABTTrack Bow Thruster Control
- Simrad FU 80 Autopilot/Steering Control
- Simrad AP 70 Steering Control
- Jastram Rudder Angle Indicator
- Jastram Command Indicator
- 2 Aetna Digital ME RPM Indicators
- Maine Engine Start/Stop
- Furuno Hailer
- NAIAD Stabilizer Control
- 2 19” IKEGAMI CCTV Screens
- Furuno 0560 08 Inmarsat C
- Elbex EXS 126 Switcher for CCTV Cameras
- ICOM IC M604 VHF Radio
- Hikvision DVR for camera recording, November 2018
- BNWASS, June 2018
- GlobalStar Sat phone
- XPC Shuttle windows 7 Max Sea computer
- Iridium ITU 1000 phone
- APC UPS XS 1500
- Peplink balance 30 LAN router
- (2) Tough switch POE 8 channel Ethernet switchers
- MOD tap 24 channel Ethernet switcher
- Panasonic KXTD 1323 Phone System
- Netgear 5 channel W/100M switch router
- Intellian 80 cm VSAT ACU V281J3W
- (2) Extron DVIRGB 200 interface
- Extron MVX Series matrix switcher 8x8
- (2) Extron INI502 video Scaler
- APC UPS 1000
- Marantz NR1403 receiver for TV
- Directv HD DVR receiver for TV
- Hp Compaq computer Windows 7 engine room monitor system
- APC UPS 1000
- Marine Air Systems A/C control
- Flare Kit
- A/P switch between Navnet and MaxSea
- Ships Alarm
- Kahlenburg Bros Whistle Control Switch M463A
- Netcom wireless broadband AT&T 4G router
- Wave wifi antenna
- Cisco Switch, June 2018
- Kerio Controller, May 2019
- Scotsman CU50 icemaker
- Ulinesmall refridgerator
- Resound audio control
- (2) Polk audio speakers
- 8 ft Sunesta awning
- Small refrigerator ULN 29RWHOO
- Scotsman CU50 Icemaker
- Nautica Structures passarelle
- 6 Deck Cleats
- 2 Air make up units
- Engine room fire suppression station
- Russound audio control
- 4 polk audio speakers
- 4 elbek CCTV Security cameras
- UMT side carbon fiber boarding ladder (Tide Rider)
- Stowable Swim Ladder for Swim Platform Aluminum backup (2nd)
- Tide Rider side boarding ladder
On Deck Crew/Medical Cabin
- 32” Sony TV
- Samsung Blue Ray DVD Player
- Crestron MC4 4 series Control System installed 2021
- Apple TV 4K Media player installed 2021
- PME Bluetooth 4.0 receiver module installed 2021
AV Equipment- Misc
Mechanical
- Zero Speed Stabilizers / Naiad / Installed in 2018
- (2) Deutz 604BV12, 2200 HP - 250 hours since full factory rebuild
- (2) Generators 99KW model M668TH 99L (Both electrical ends serviced in 2019)
- Alpha Laval MAB 103B 24
- Nielson Bilge Boy oil/water Separator 10025
- ZF BW 466 3.5 to 1 Gear Boxes
- Jastram steering with 2 Vescor pumps
- (2) Reverse Osmosis water makers with soft starts 1500 GPD/3000 GPD
- (2) Grundfos fresh water pumps
- Sterilite UV water purifier with Aqua Pure filters, Culligan water softener
- 85 gallon hot water heater, Grunfos hot water circulating pump
- Tankless Tempra Plus instant hot water heater (backup)
- (2) Gasto air compressor pumps
- 7 ft long Craftsman tool box
- (2) Yaskawa engine room control fans
- Headhunter tank sensor for grey water and black water
- Orca sewage treatment plant
- Vintimar Monitoring System
- Atlas 99KW Shorepower converter
- Atlas main electrical panel
2024 Upgrades
- Complete rebuild of main engines to factory (new) spec
- Zero time with 250 hours currently on the hobbs meter
2023 Upgrades
- New fabrics, flooring and furniture

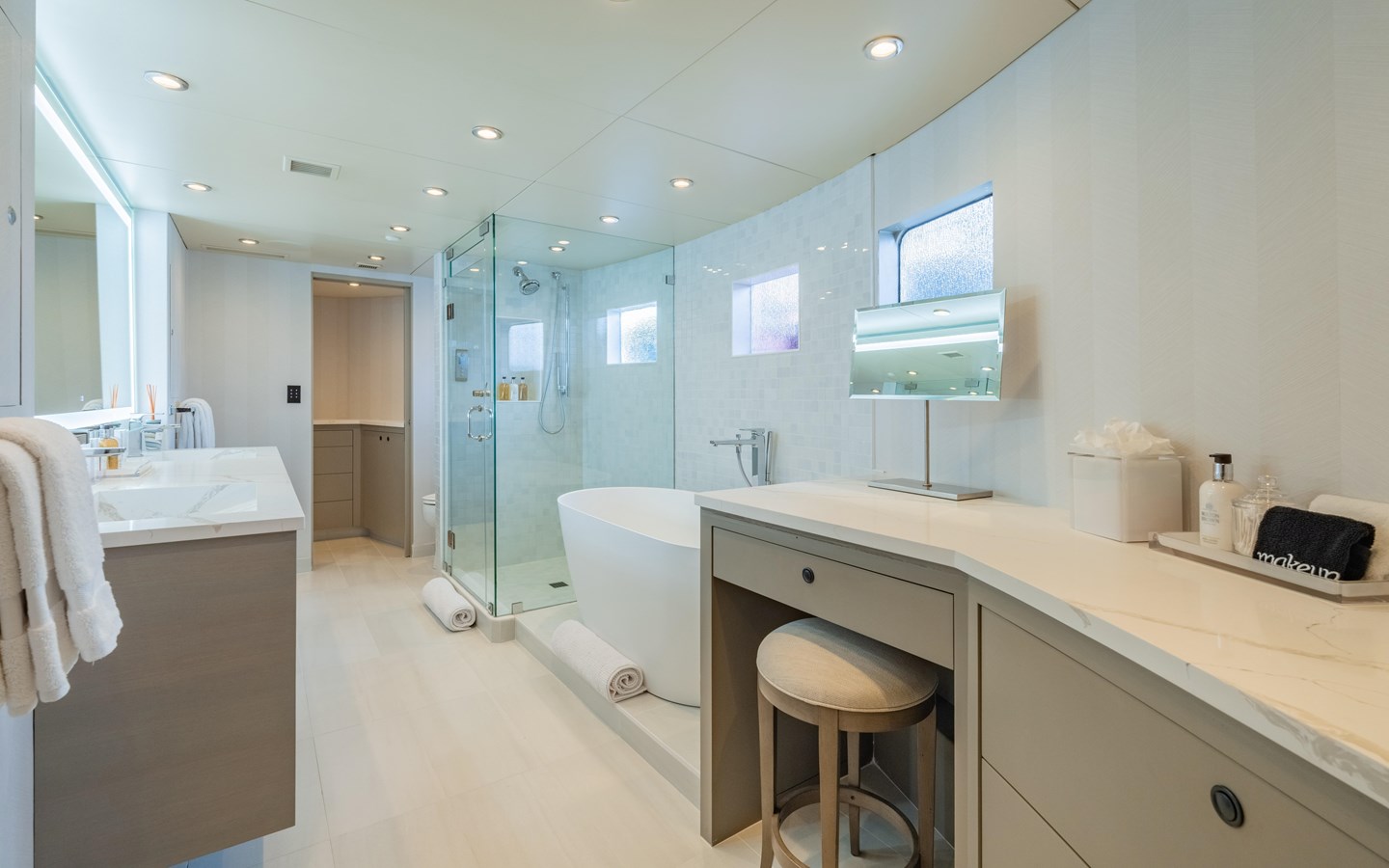

- His and her master bath
- New sundeck counters
- Bar
2018-2019 Upgrades
Mechanical
- Naiad Zero Speed Stabilizers including, New fins, New Head Stock and rams, New Electrical driven Powerpack (HPU)
- ABS Approved fiberglass strengthening to hull
- new oil conditioning cooling system, New Oil reservoir, Upgraded Main
- Added silver Ion filter and water filters throughout to be able to consume ships water
- Added an Atlas 1600 davit to the bow to be able to store 4x jetskis on the fore deck. (davit can also be moved
- to the swim platform if needed)
- Full rebuild of Sundeck davit. Nautical structures. Including all new motor, guides and cables) November 2019.
- Pass load tests Nov 2019
- Headhunter grey water monitoring system installed
- Top end rebuilds Port generator Nov 2018
- Top end rebuilds Stbd Generator Nov 2019
- Upgraded pumping system to MSD
- AC, New compressor installed to #3. Installed CIP system to all chillers
- Added redundancy raw water-cooling pumps to fridge/ freezer System.
- ALL new emergency system back up batteries
- Windlass port side Hydraulic Motor replaced with new.
- Sand media filter installed to Water maker intake system
- Compressed air drier and auto drain added to protect pneumatic control system
Interior
- New custom built furniture in main salon and sky lounge with internal storage
- Cabin #6 refit to accommodate queen sized bed
- Lower guest cabin refit 3 out of 4 cabins have convertible king/ twins. All new beds, mattresses, carpet and furnishings
- New sub zero draw fridge sky lounge bar
- All new motorized blinds controlled by remote May 2019
Bridge
- DVR recording on Camera system
- Upgraded Nav Computer to be able to run Nobeltec Timezero Professional.
- Auto pilot upgrade to be able to sail a course from Nav computer
- Ran multiple Cat5 cables to captain’s cabin for remote monitoring in the cabin. Nav, radar, cameras
- BNWASS system installed in bridge, Capt cabin and crew mess
- (2) Pepwave 4g modems installed for data
Entertainment
- Intellian TVRO upgrade to 1m dish
- AV Upgrade to Solsys media system. Movie and Music Library throughout
- Wifi upgrade to Cisco network throughout. Controlled by Kerio controller. With Dual pepwave 4g routers
Galley
- (2) new Kitchen Aid ovens installed Nov 2019
- New Kitchen aid cooktop installed Nov 2019
- New Viking Induction cooktop installed Nov 2018
- Upgraded Voltage step up transformers for new galley equipment. To provide the required operating voltage
- CC TV added to galley
Deck
- Removable hand rails around sun deck for Golf and water slide, 2018
- Raw water feed plumed to sundeck for Slide, 2018
- Main Deck aft dining Table installed a leaf to accommodate 12 people, 2018
- New sun loungers added to Sundeck aft, 2018
- All forward facing windows removed cleaned, trim painted and reinstalled, 2018
- Upgraded swim platform Aft entrance hatch, New rams on doors and new remote-control opening system, 2018
- Scuba tank rack - 2018
- Added removable swim platform shower, 2018
- New sun awning on sundeck, Nov 2019
- All new Issenglass wind shield for sundeck, Oct 2018
- New chain locker floor installed, Nov 19
- 3rd life raft added to sundeck for flag requirement to charter,2018
- Air pumping system installed for inflatables, 2018
- Recovered Helm Sundeck Captains Chairs, Nov 2019
Toys

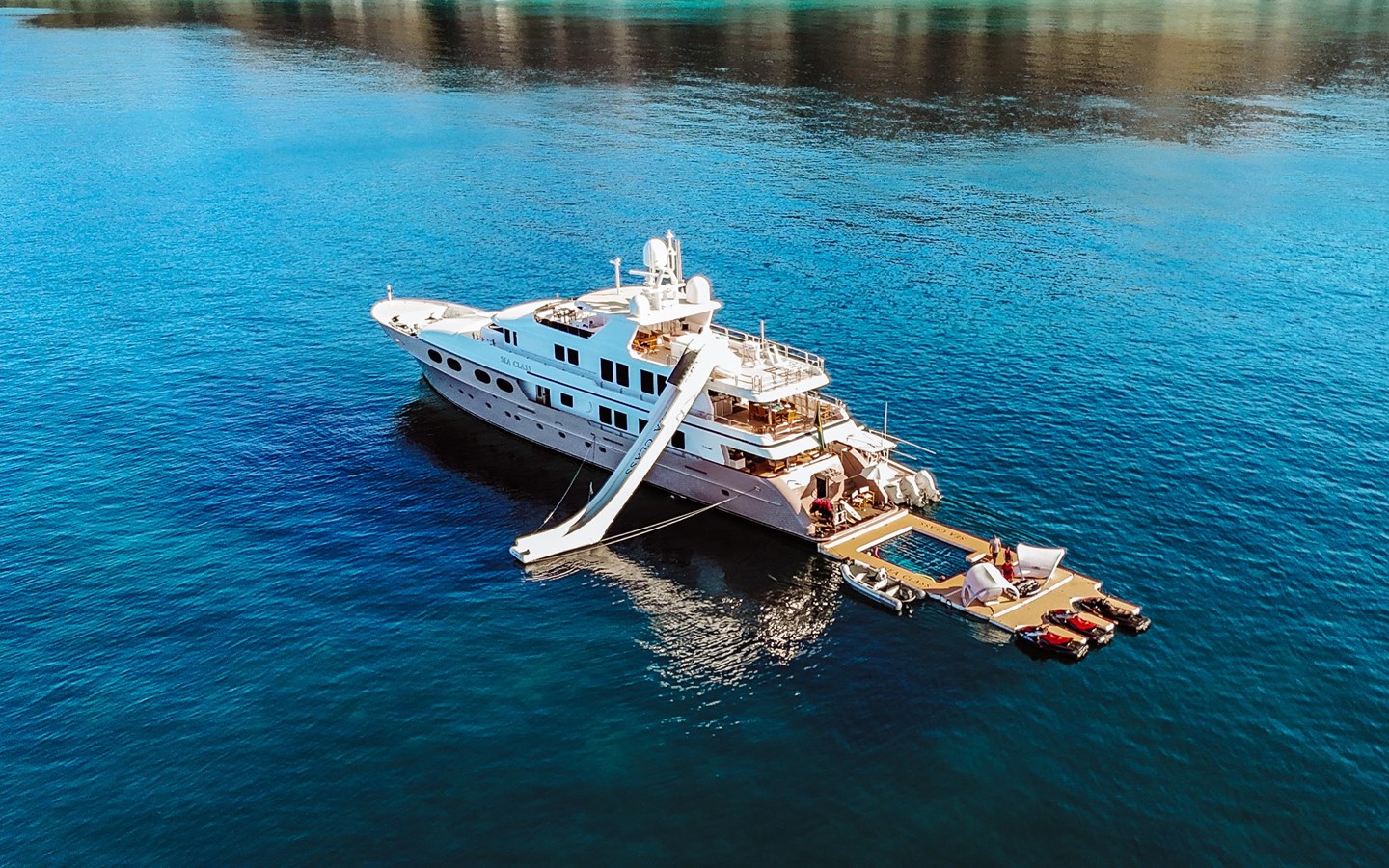

- 15' Jet tender RIB
- (4) Seadoo jet skis
- Funair 27' Slide
- Funair 30' Swimming pool / Bunny pad
