LEGACY YACHTS LINDY 40'

01 Description

LINDY IS A LEGACY CUSTOM FISHERMAN'S CRUISER!

Currently located in Stuart, Florida, LINDY is easy to view and ready for her next owner.

KEY FEATURES:

Comfortable, well-appointed salon and galley layout
Timeless Downeast-style fisherman cruiser design with classic lines
Spacious flybridge with excellent visibility and seating
Ideal for fishing, weekend cruising, or extended stays aboard
Over USD 150k of fishing specifics added since owned
Sword fish rig added - new 2026
Various updates and refit completed under current ownership
Pivoting mast that can be lowered to reduce bridge clearance
Underwater exhaust systems are quiet and excellent for fishing

02 Specifications

Basic boat information

Builder LEGACY YACHTS
Model Sedan Flybridge
Boat Name LINDY
Year 2004
Condition Used
Category Sport Fisherman
Construction Composite

Dimensions

Overall Length 40'
Beam 13' 6"
Max. Draft 4' 6"
State Rooms 2

Engine 1

Manufacturer Cummings
Model QSM-11
Engine Type Inboard
Fuel Type Diesel
Horsepower 635

Speed & Weight

Cruise Speed 17 Knots
Max. Cruise Speed 21 Knots
Fuel Capacity 410 Gal
Water Capacity 120 Gal
Gross Tonnage 0.00

Other

Region North America
Location Country United States
Location State Florida
Location City Stuart

03 Additional info

CONSTRUCTION

Fiberglass hull and superstructure

DIMENSIONS

General

Length Overall (L.O.A.):

40.00 feet

(12.19 meters)

Beam (molded):

13.50 feet

( 4.11 meters)

Draft (loaded):

4.50 feet

( 1.37 meters)

Dry Weight: 22,000 lb.

Capacities

Fuel Capacity:

410 US Gallons

(1,552 liters)

Water Capacity:

120 US Gallons

( 454 liters)

Holding Capacity:

40 US Gallons

( 151 liters)

Speed

Maximum:

21.0 knots

Consumption: 25 US Gallons /hr

Range: 250 nm

RPM: 2,400

Cruising:

17.0 knots

Consumption: 20 US Gallons /hr

Range: 328 nm

RPM: 2,000

Economical:

11.0 knots

Consumption: 10 US Gallons /hr

Range: 946 nm

RPM: 1,200

MACHINERY

Main Engines

Engine Type: (1) Cummins QSM-11 @ 635 Hp

Gearboxes for Main Engines: ZF

Drive: 2 ½” stainless steel shaft

Propeller: Bronze, 5-blade

Other: RE Thomas shaft line cutter & no drip shaft seal

Generators & Electricity

Output: 6kW

Generators: (1) Northern Lights generator

Shore Power: Twin 30 amp shore cords

Batteries:

New December 2022

(2) house batteries

(2) engine start batteries

(2) thruster batteries

Custom Legacy electrical panel with AC and DC breakers, volt and amp meters

Battery Switches: (5) Cole Hersey heavy duty 600 amp on/off switches for thrusters, starting battery windlass, and house battery circuits

Battery Charger: Yes

Air Conditioning

Type: Yes; w/ reverse cycle heat

Output: 12,000 BTU and 7,000 BTU

Air Purifiers: Webasto

Other: Aft built-in solar powered vent fans

Other Machinery

Trim Tabs/Stabilizers: Yes

Bow Thruster: Side-power, electric

Stern Thruster: Wesmar side-power, electric (New 2024)

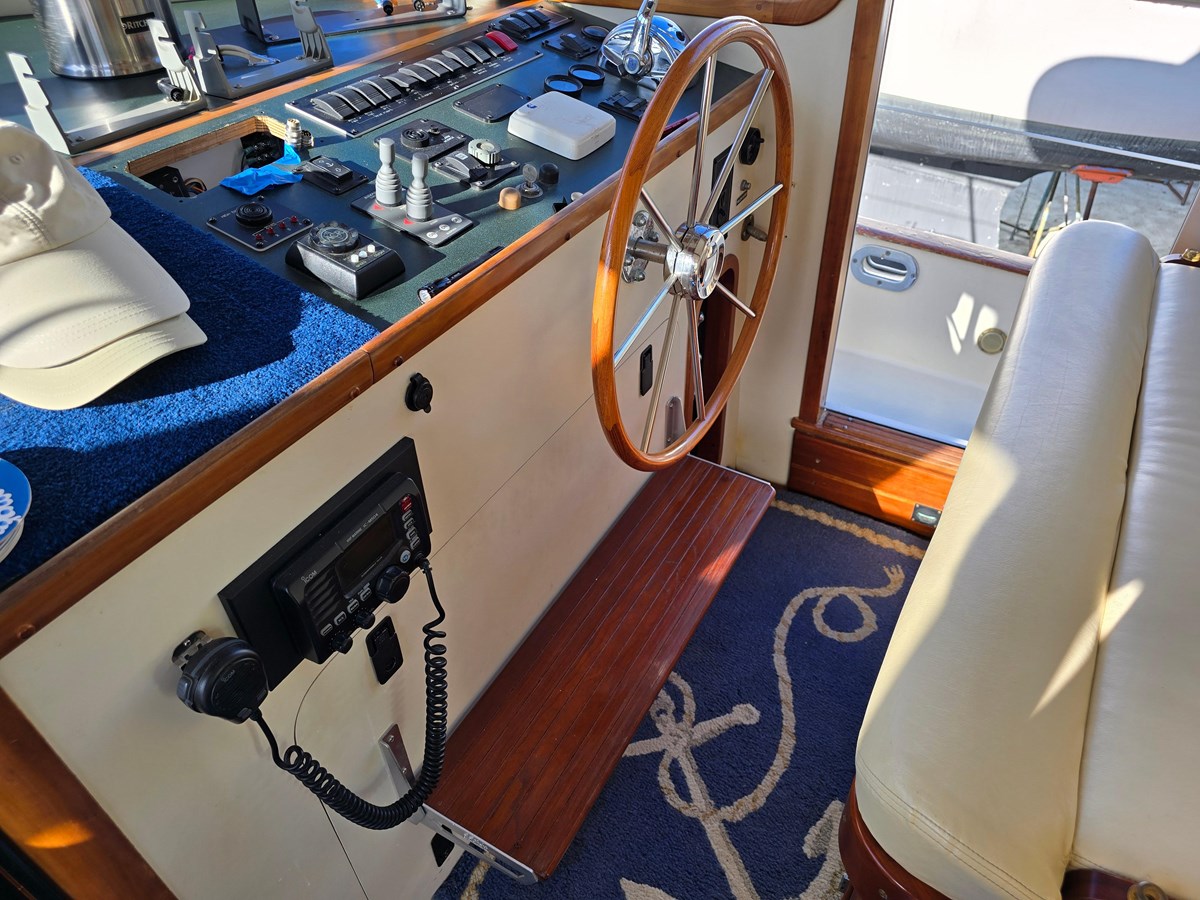

Steering System:

Mathers ZF Micro Commander single lever engine control

Cummins Smart Digital display with slow idle setting

(3) steering stations (flybridge, pilothouse, & cockpit)

Fuel Separator & Filtration:

Dual Racor fuel filters with vacuum gauges

Reverso oil change pump with pickups for engine, transmission and generator

Sewage System:

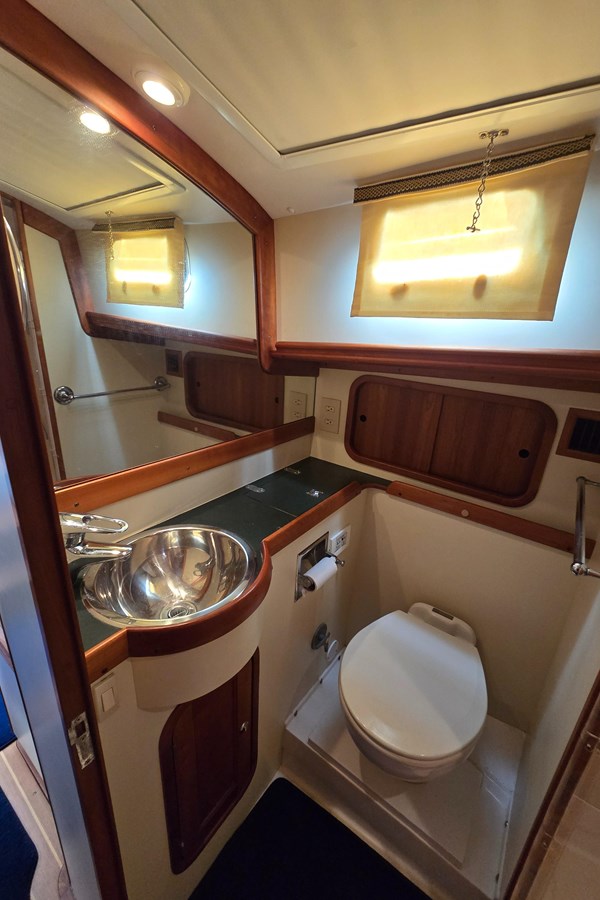

Raritan Marine Elegance electric macerating head

Holding tank pumpout system

Fresh Water System:

10-Gallon hot water heater

Bow & cockpit washdown hose (fresh and salt water)

Bilge Water Filtration: Electric bilge pumps with automatic switches

Other: Spares kit for engine, generator, & bilge pump

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems

VHF: (3) Icom

Navigation Systems

Radar: Furuno

Magnetic Compass: Ritchie Powerdamp

Auto Pilot: Simrad AP-20 w/ handheld remote

Depth Sounder: Furuno

Display Units:

Furuno NavNet system
(3) Furuno GP-37 GPS Navigator displays (cockpit, flybridge helm, & spare)
(2) Furuno RD-30 instrument displays (cockpit & flybridge helms)

Entertainment System:

Video Equipment

Apple TV system throughout

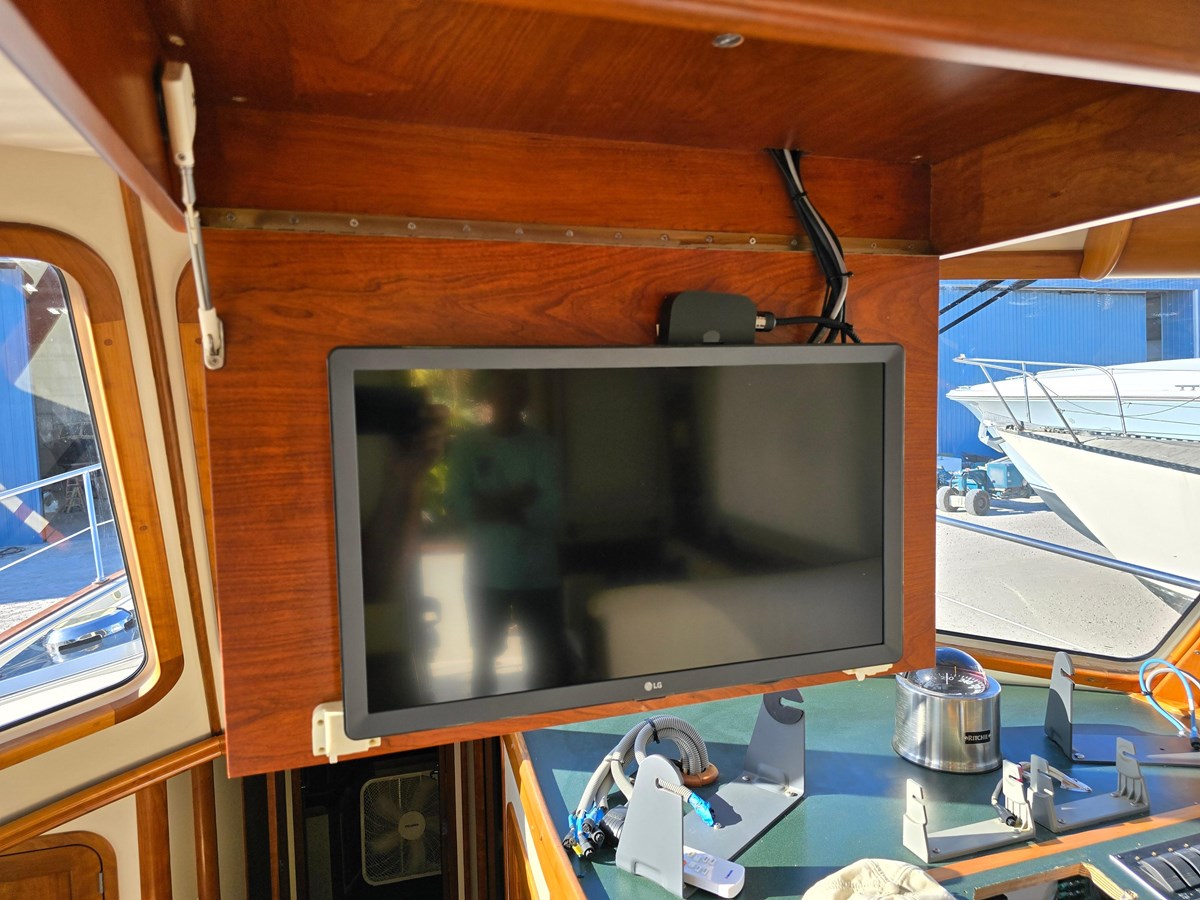

LG Smart TV, fold-down (salon)
Alpine IVE-W535HD multimedia station with DVD player, Bluetooth and USB connection

Audio Equipment

Speakers in salon, cockpit and flybridge

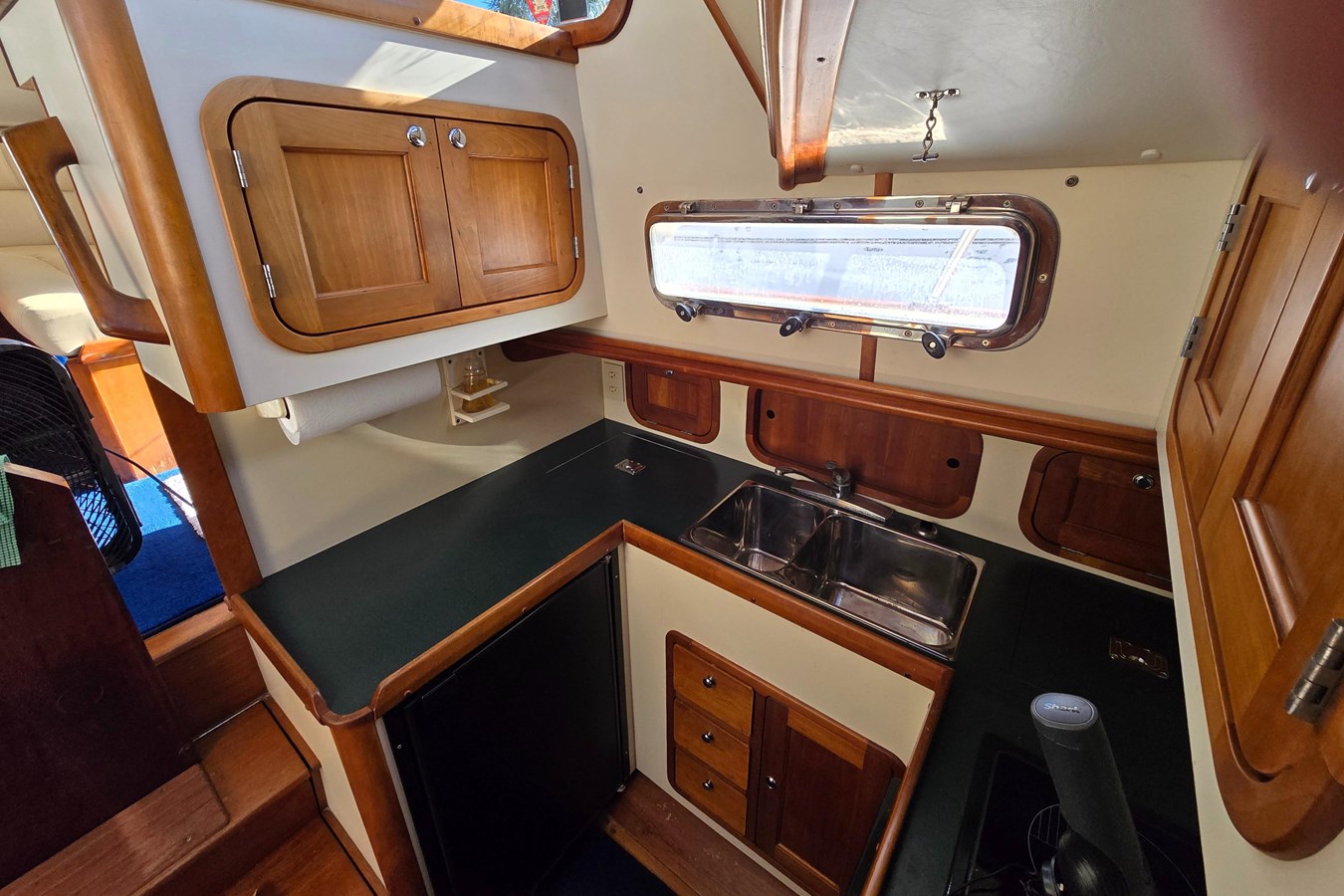

GALLEY & LAUNDRY EQUIPMENT

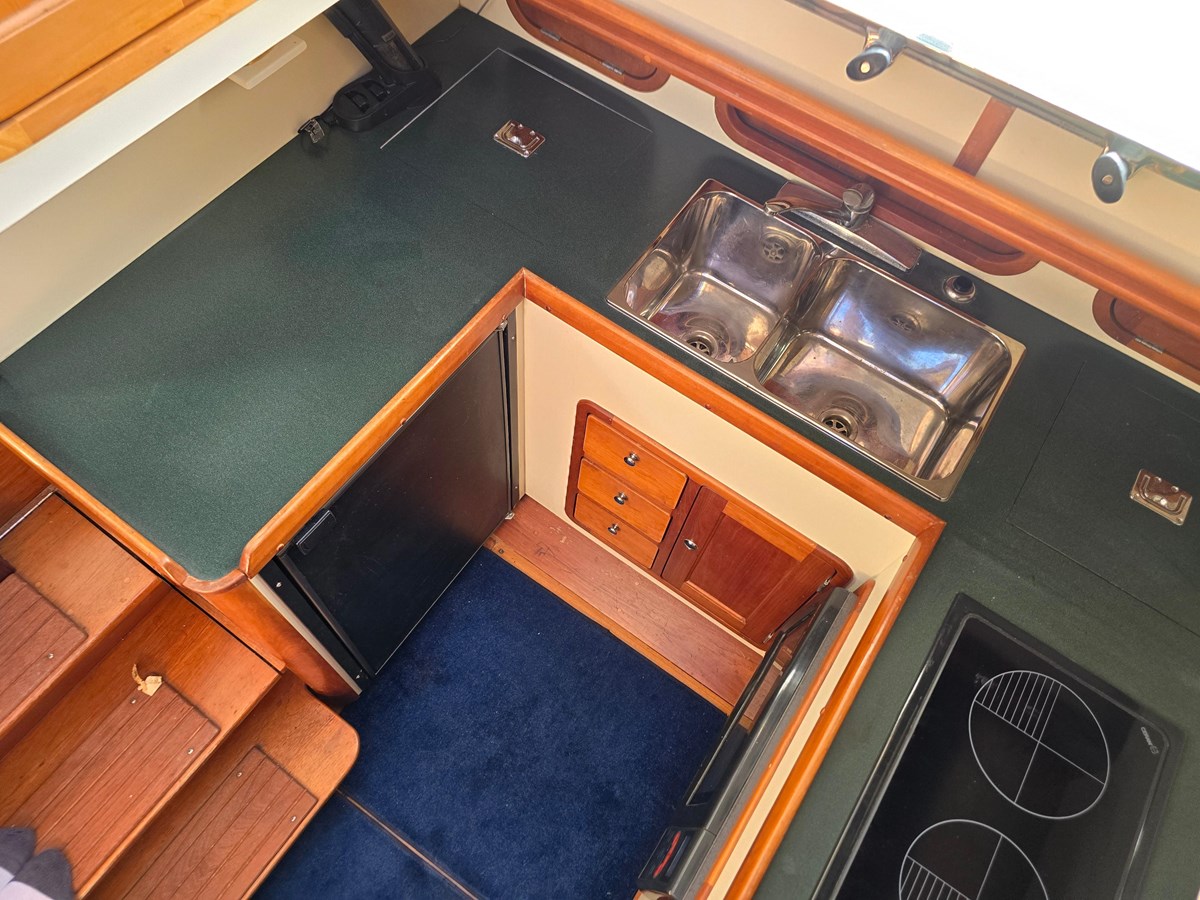

Main Galley Equipment

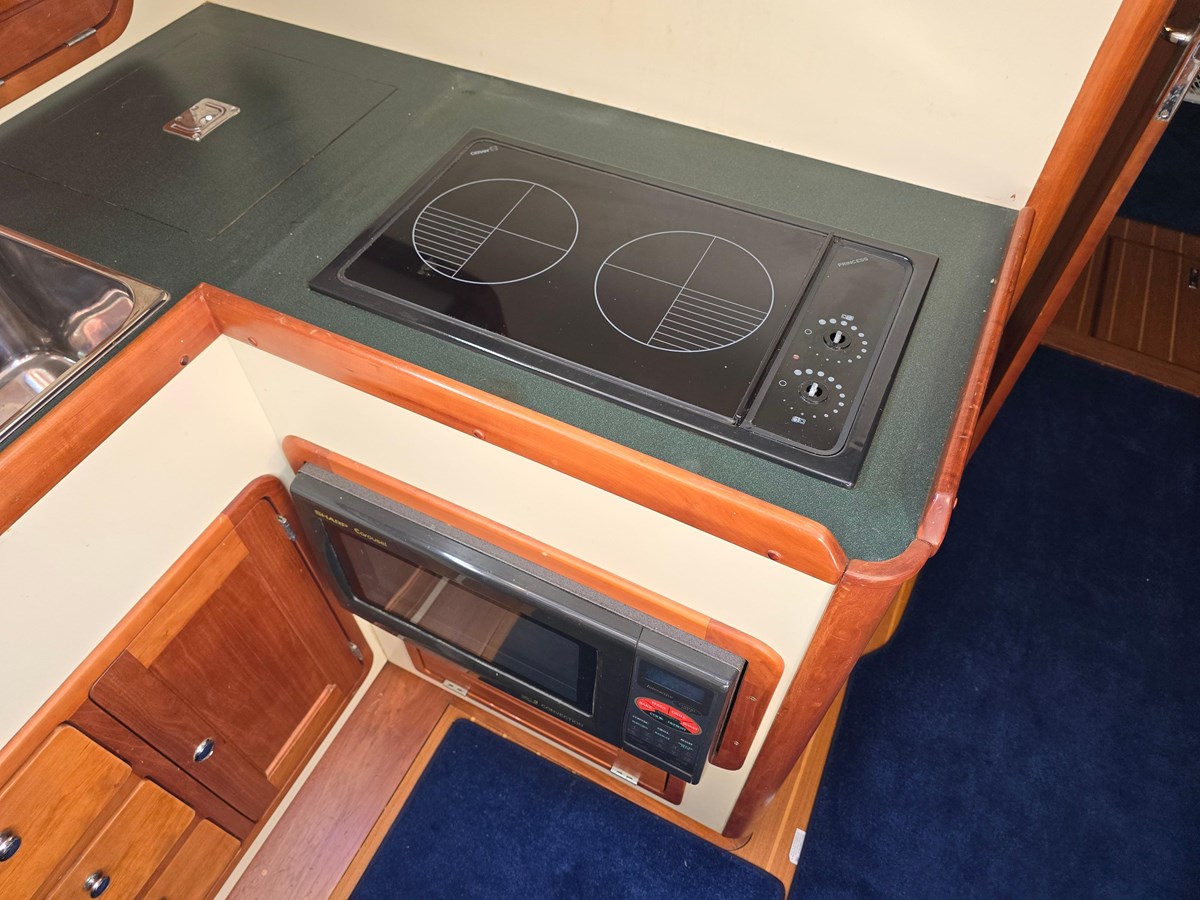

Cooking Equipment:

2- burner Princess electric cooktop

Sharp microwave

Refrigeration/Freezer:

Under counter refrigerator

Top loading freezer compartment

TENDERS & TOYS

Dinghy: 8’ inflatable with oars

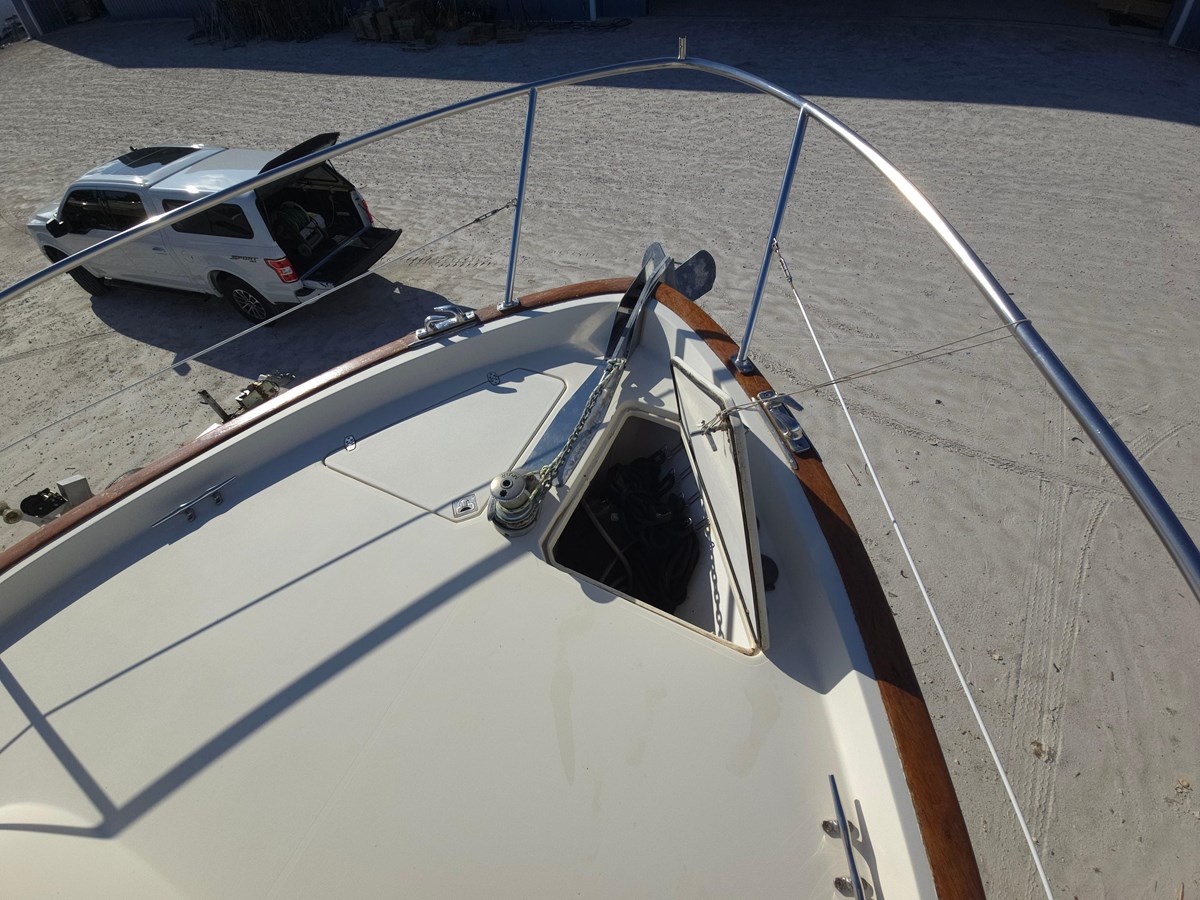

DECK EQUIPMENT

Anchor Windlass System: Muir 12V DC, electric

Anchors:

Galvanized Delta

Secondary Fortress anchor

Anchor Chain:

150’ chain with 150’ 8 plait yacht braid rope

Secondary chain and rode

Swimming Platform: Yes

Fishing Supplies:

Baitwell & sink under flybridge ladder

Multiple rod holders mounted to hand rails

Lee graphite outriggers (flybridge)

Removable fighting chair stored in bunk area

Top:

Stainless steel folding bimini

Custom overhead awning

Spotlights:

(1) Remote-controlled

(2) handheld

Other:

Exterior canvas covers for windows

Fenders and docklines

Forepeak storage for anchor chain, fenders, and lines on either side of windlass

Courtesy light in bulwarks

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Fire Fighting Equipment

Fire Control System: Fireboy automatic fires suppression system

Safety Equipment

Life Rafts: (1) Viking 6-person (New 2023)

Life Jackets: Yes

Flares: Yes

ACCOMMODATIONS

GENERAL

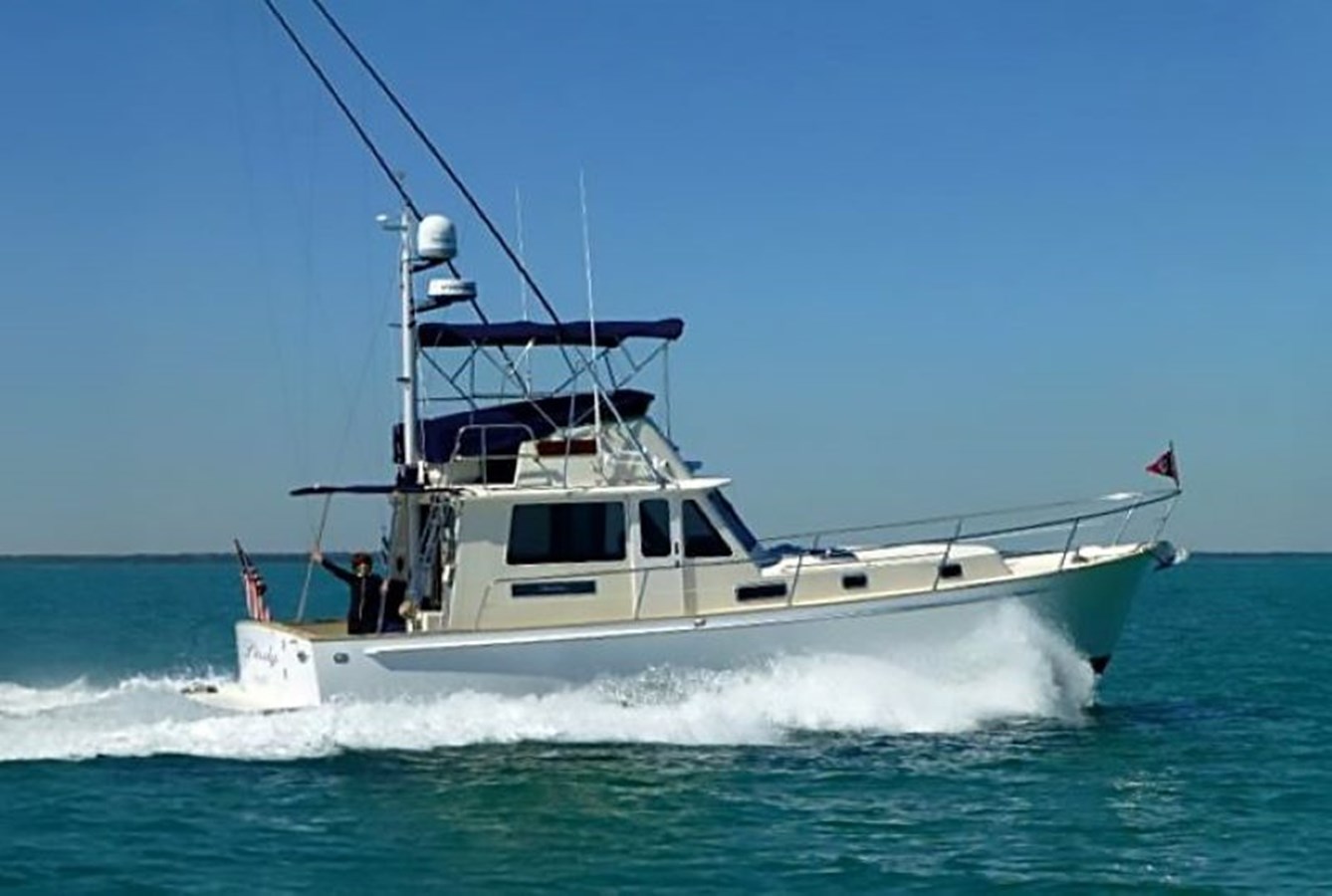

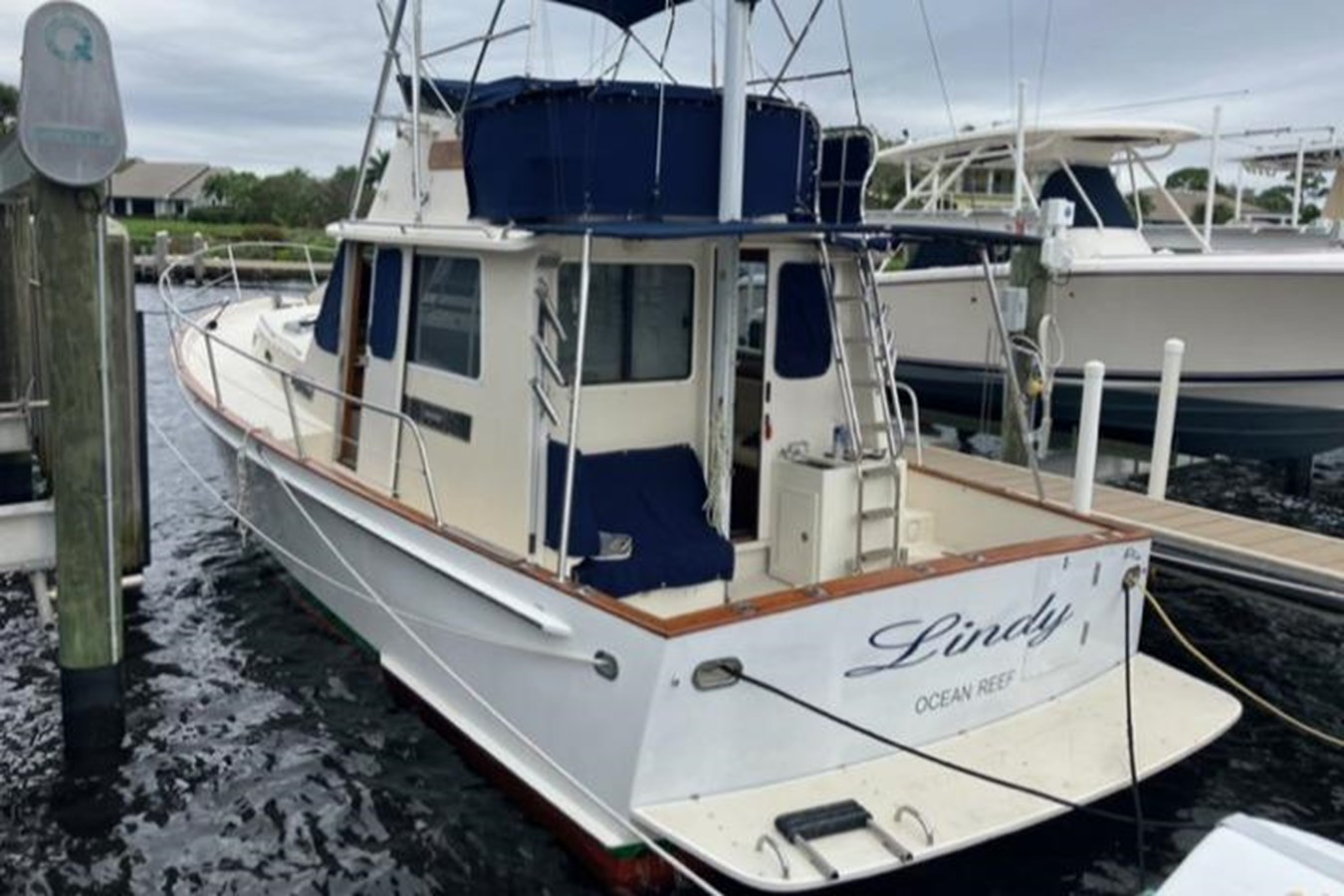

LINDY is a well-maintained 2004 40' (12.19 m) Legacy Motor Yacht featuring timeless Downeast styling, a comfortable two-stateroom layout, and dependable diesel power. Ideal for cruising, fishing, or relaxing at anchor, she offers a spacious salon, functional galley, and open cockpit—perfect for couples or small families seeking a versatile and elegant coastal cruiser.

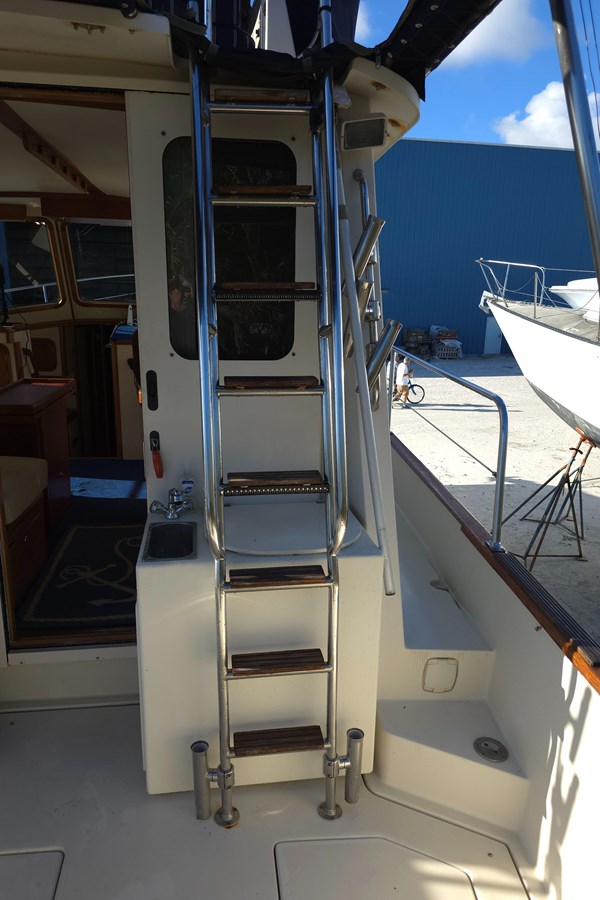

The aft cockpit provides a comfortable outdoor space with access to the swim platform and ladder up to the flybridge. The aft-facing seat has additional storage below the cushion. A secondary steering station outboard of the aft-facing seat has controls for the engine, bow, and stern thrusters.

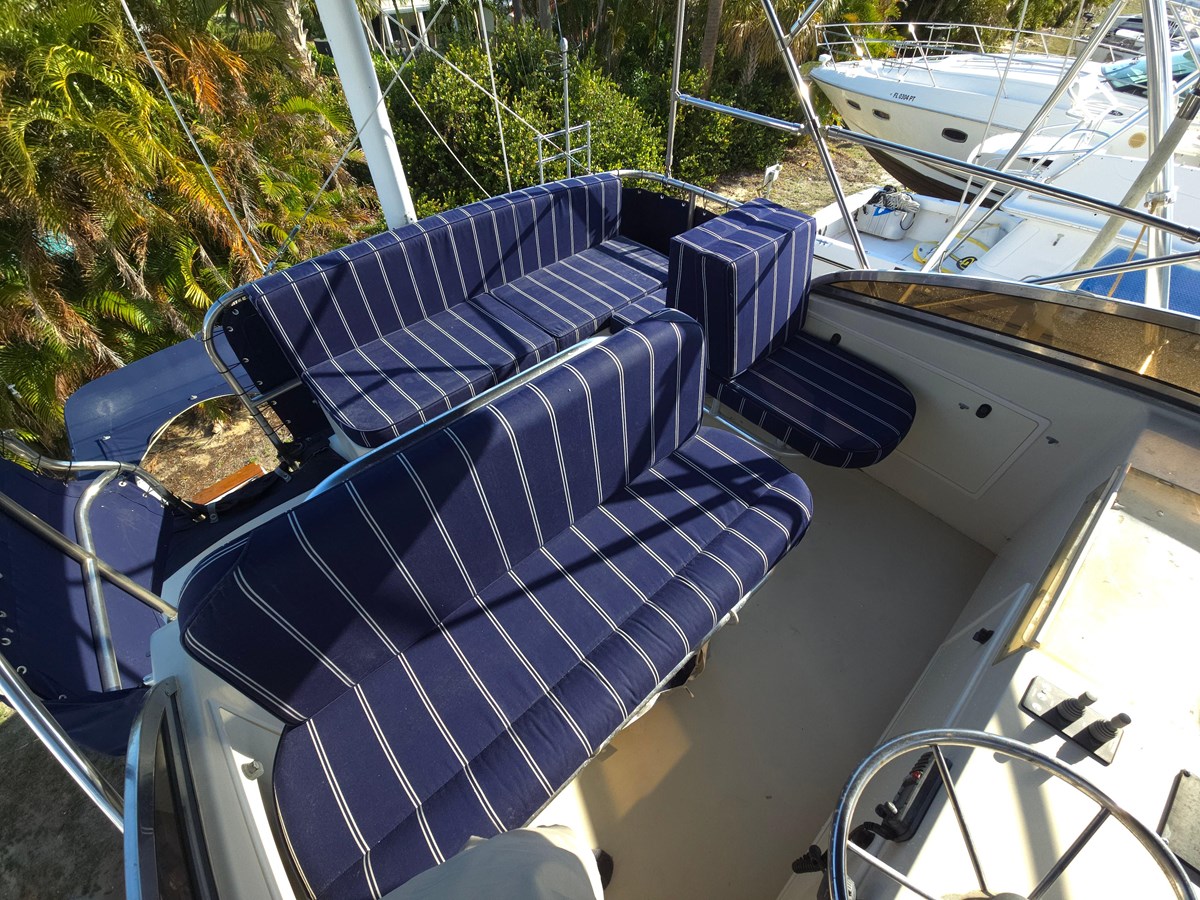

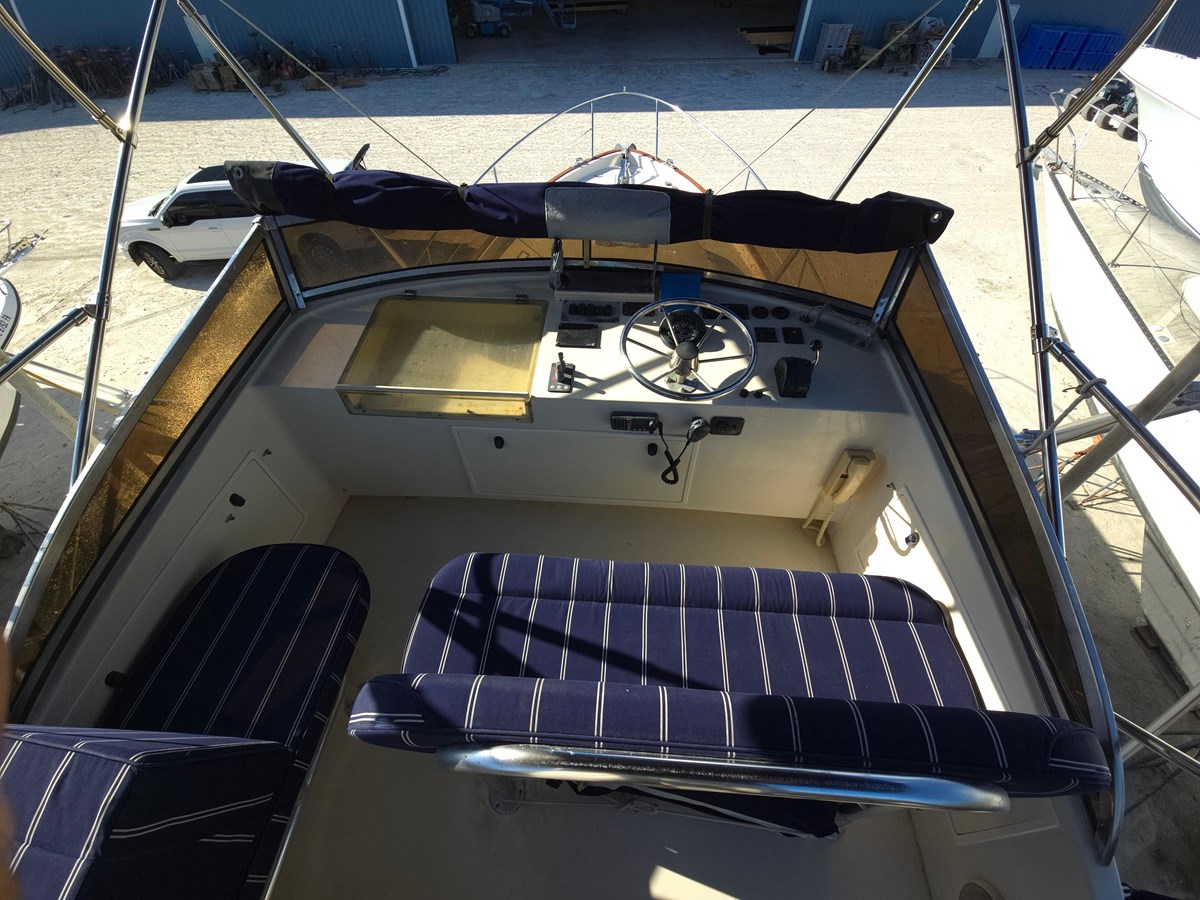

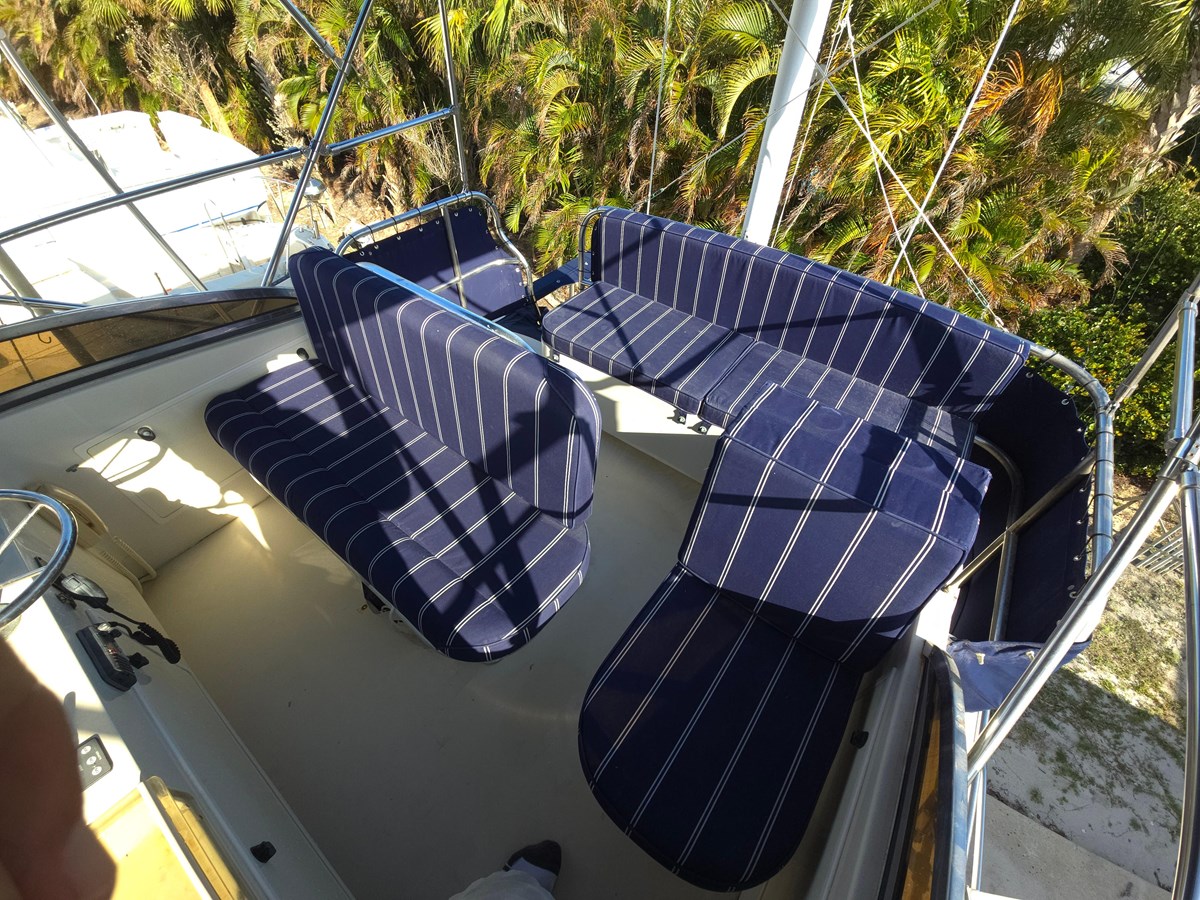

The flybridge provides an additional outdoor entertaining and driving area including a triple helm seat with a single passenger seat to port, and a custom second row of seating behind. Additional storage can be found under the flybridge helm and under the aft seats.

OWNER & GUESTS

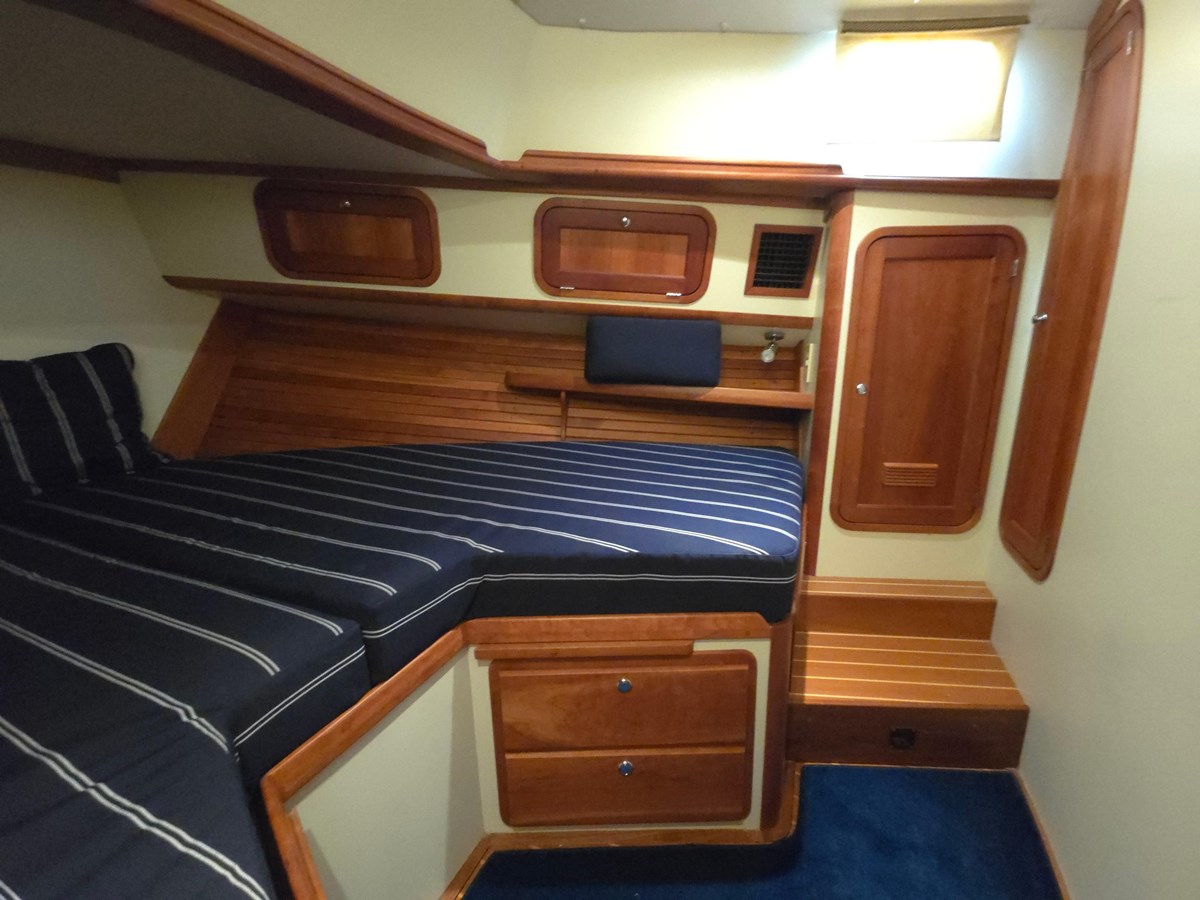

LINDY comfortably accommodates 5 guests with a forward master cabin, a guest cabin, and a shared head with shower. Guests can relax in the bright salon, dine in the cockpit, and enjoy the helm deck and foredeck for cruising or lounging—making it ideal for couples or small families on coastal getaways.

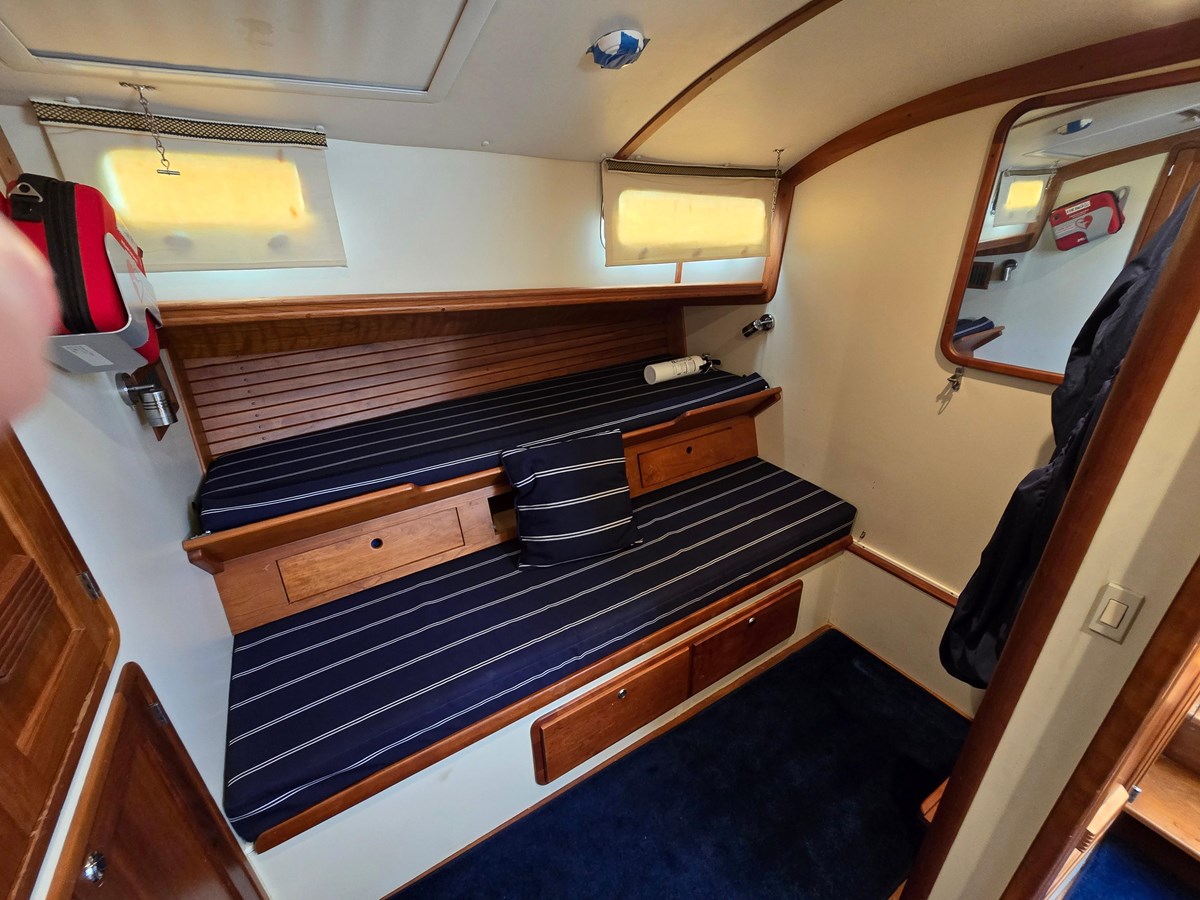

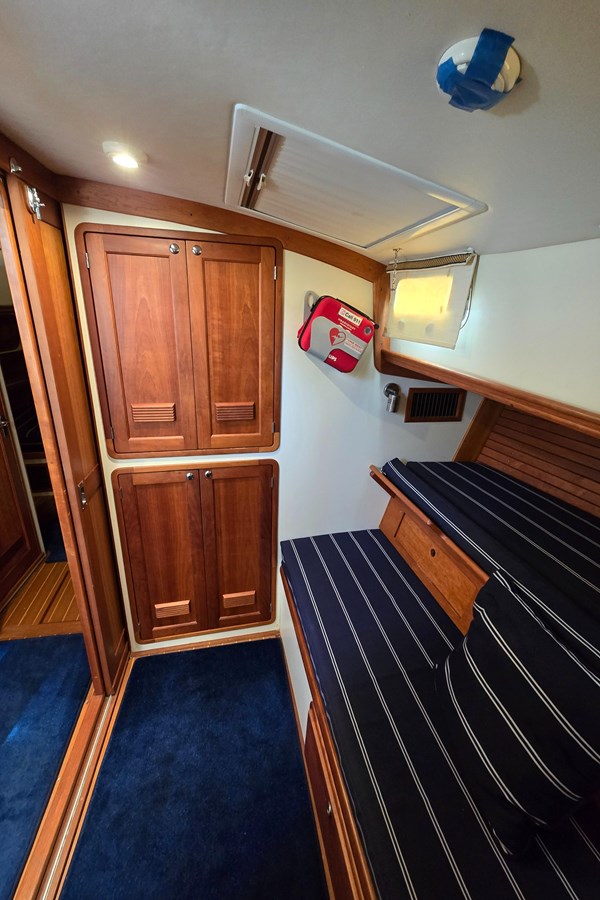

The guest cabin sleeps up to 3 people featuring a lower berth that can be pulled out to convert to a small double. Sliding pocket doors can be closed for privacy.

WORKS COMPLETED

2023 – 2025:

Completed an extensive enagine inspection - engine is in excellent health with the exhaust elbow replaced as a proactive measure

Repaired underwater exhaust delamination

Air conditioning system professionally flushed with Barnacle Buster

Installed a new brainbox for the autopilot

New shaft seals installed

Vessel has been meticulously maintained by a licensed captain

2013 REFIT:

Engine room insulation upgraded to rigid Soundown panel system

Replaced all plastic thru-hulls with solid bronze fittings

Installed new R.E. Thomas self-aligning coupling

Custom valves added to engine and generator inlets, allowing for easy flushing

Custom-designed 3-person helm seat with dedicated quick-access storage for a 6-person life raft

Replaced toilet with the Raritan Marine Excellence model (freshwater flush) and replaced all head plumbing and the holding tank pump-out system

Comprehensive replacement of all hoses throughout the vessel

Replaced all batteries

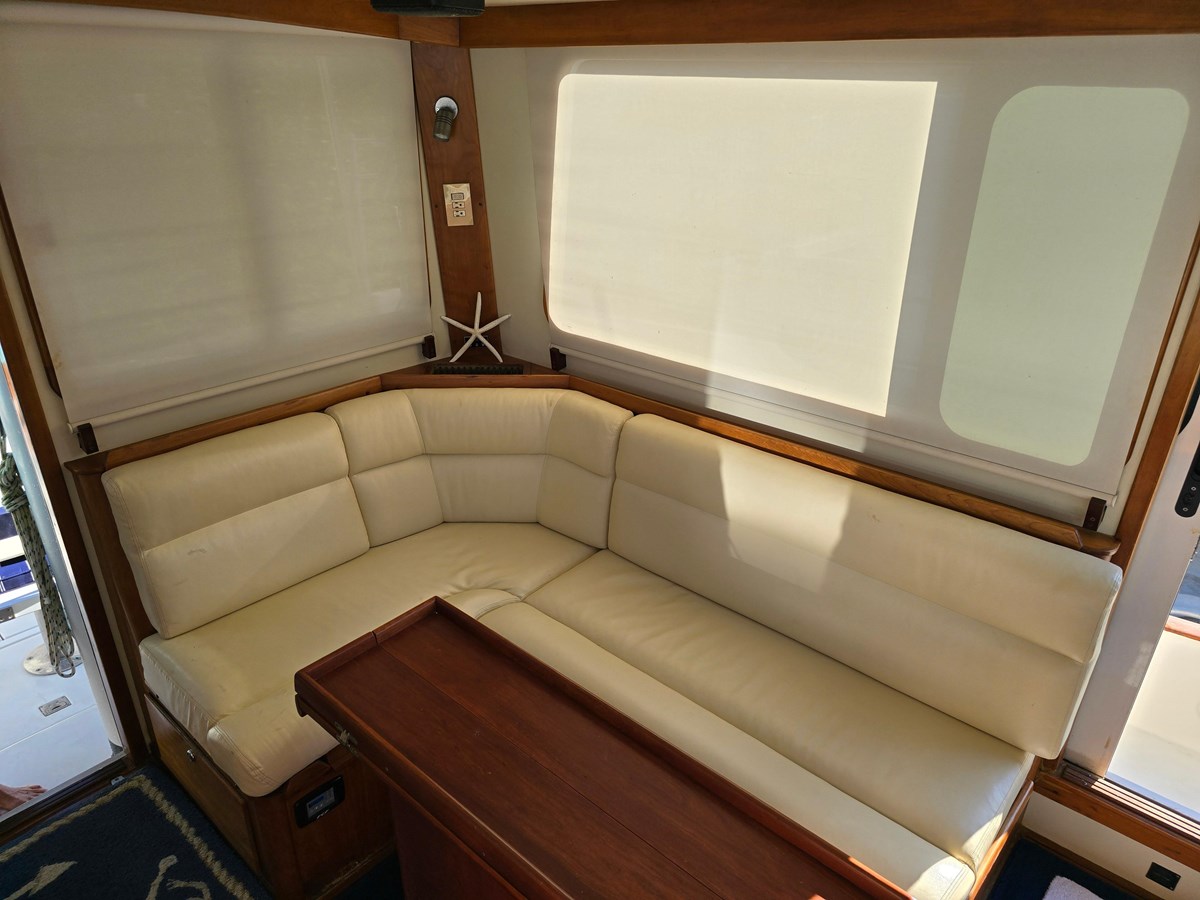

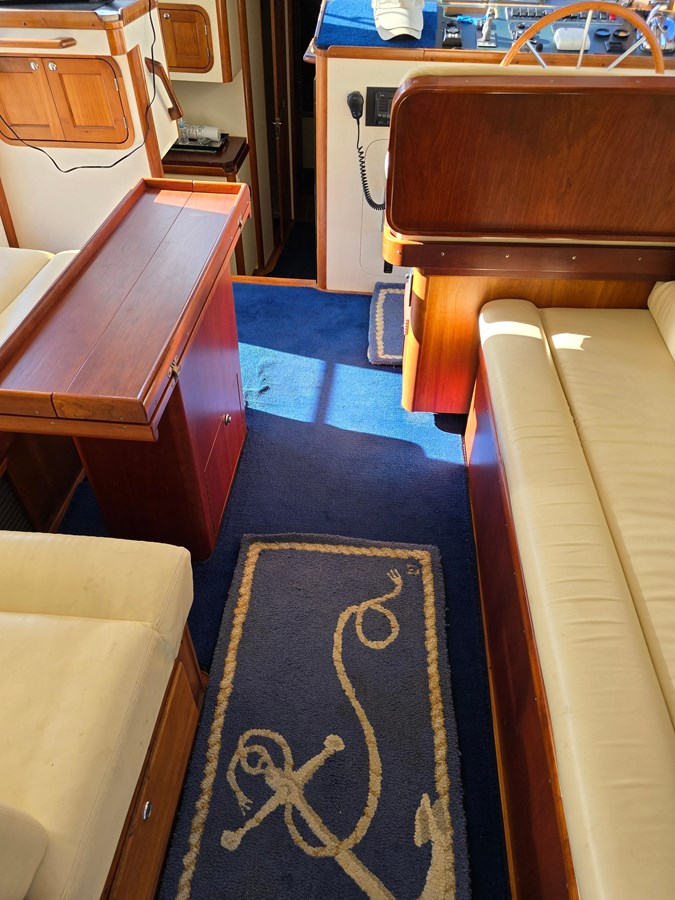

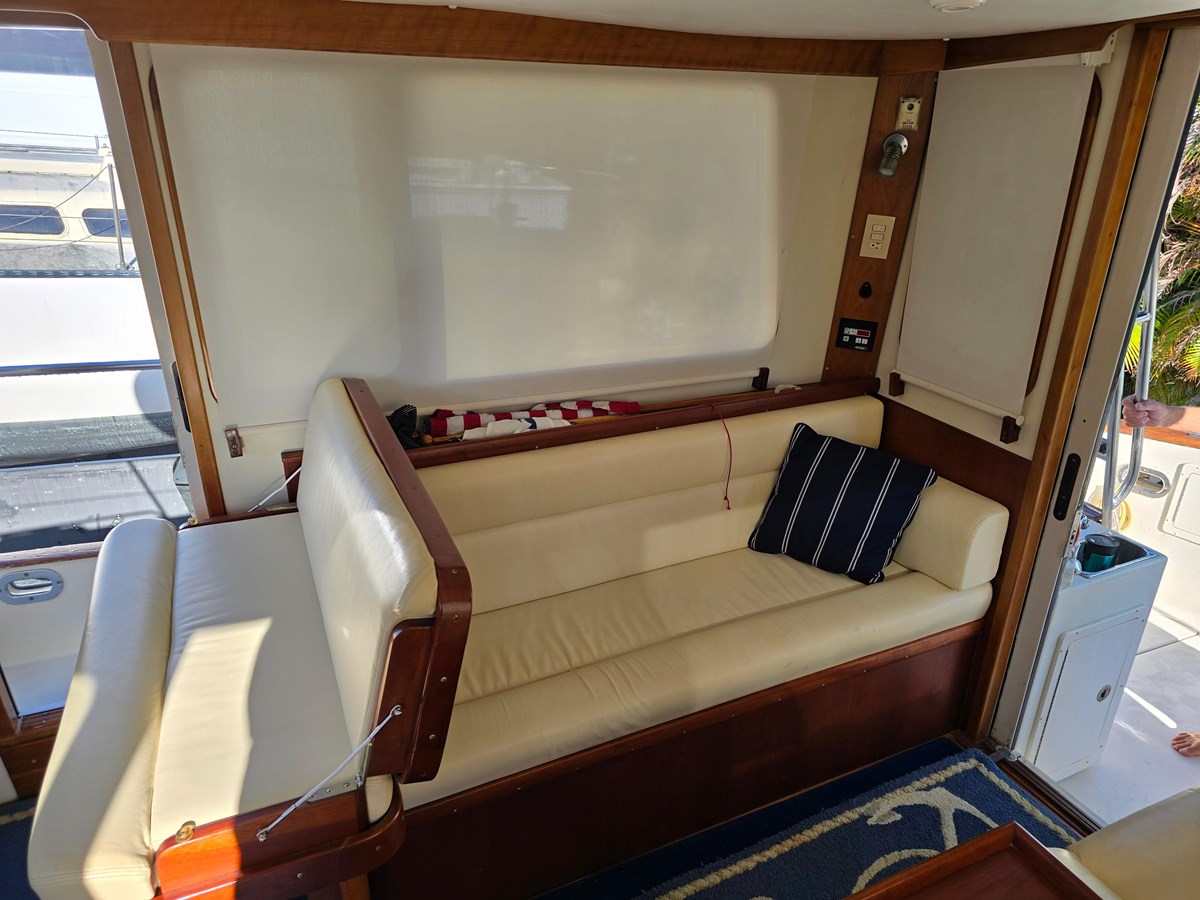

Salon features electric roller shades, a new double helm seat with footrest, rod storage under the starboard side sofa, and a custom fold-out table with integrated bottle storage

Entertainment center replaced with a fold down Smart TV, DVD player, and a vessel-wide smartphone-compatible audio system

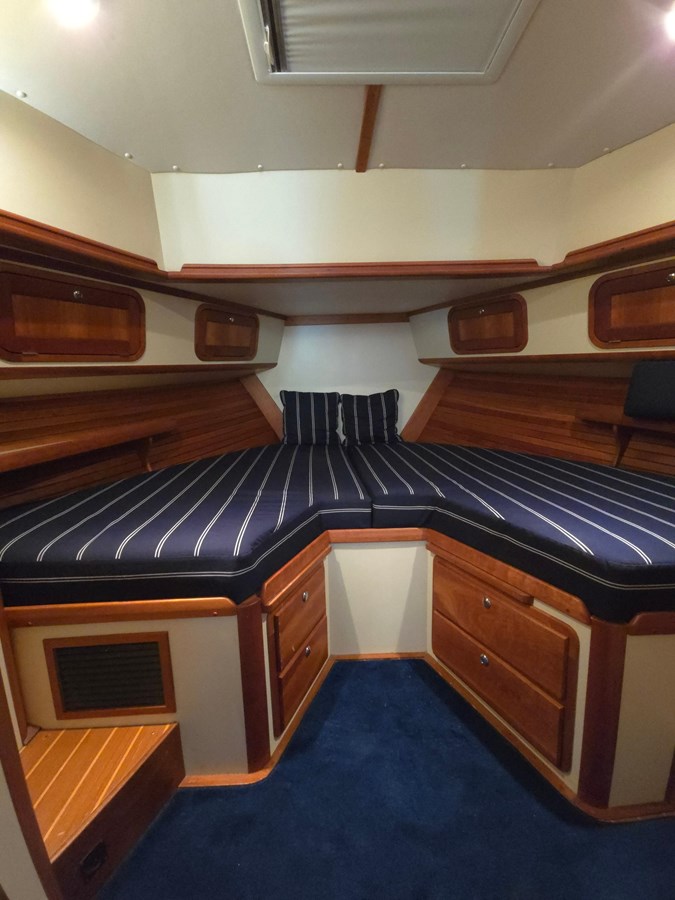

Enhanced V-berth with a memory foam topper and custom-fitted linens for all bunks

Removed bulky washer/dryer and replaced with shelves for additional storage space

Permanent full Bimini top secured with reinforced horizontal tubes (hurricane-tested) and a rigid cockpit sunshade with rod-holder supports.

Converted the aft storage box to a full width seat with integrated storage specifically for an 8’ inflatable dinghy

Added Removable electric grill (115V)

Full flybridge cover, exterior window covers, and serviced sliding doors for effortless operation.

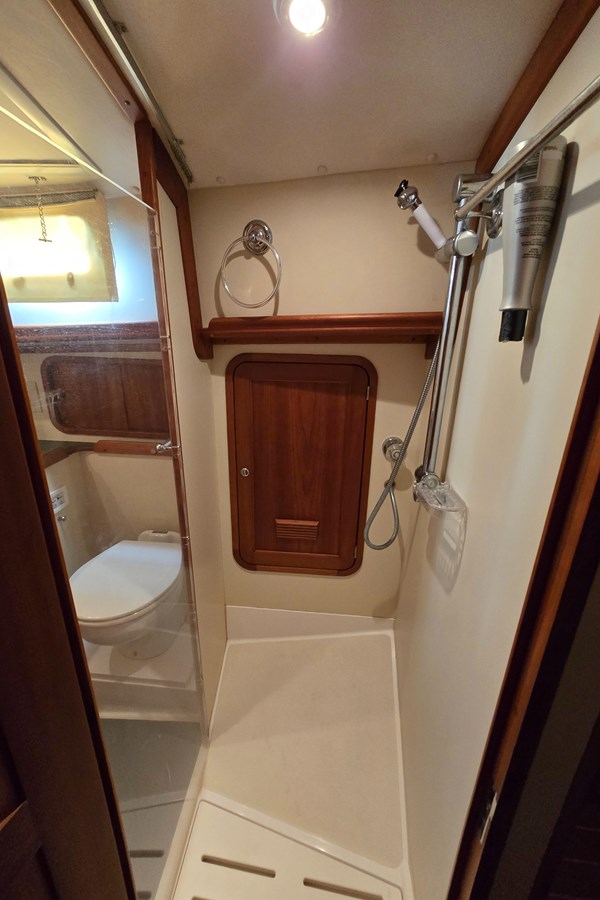

Added a plastic divider between the shower and toilet area

Moved horn compressor from the engine room to the area under the helm

Sliding windows in salon replaced with single glass windows to prevent leaking

New removable fighting chair

Replaced standard cap rail rod holders with draining units

FISHING ACCESSORIES ADDED

"Can troll an 8 rod spread and 2 teasers."

Lee's carbon fiber outriggers and SS holders

Hinckley extra heavy-duty custom awning with zippered extension

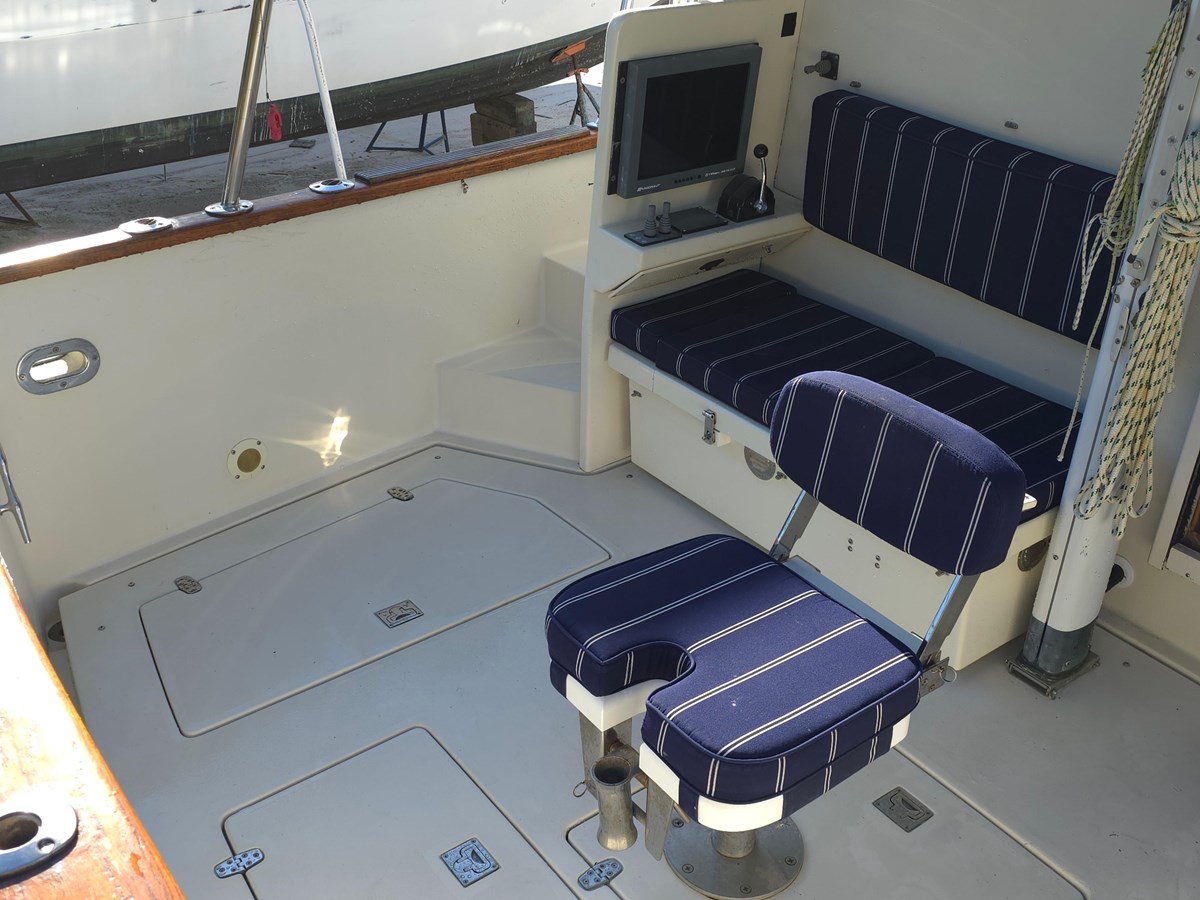

Custom cockpit panel with complete set of controls

Cockpit screen for navigation, radar, and depth

8 Lee clamp-on rod holders

Fresh and saltwater cockpit wash down

Custom large capacity bait wells and sink for bait rigging

Aft-facing seat next to cockpit controls with storage under

Custom removable fighting chair, stored in bunk cabin

2 teaser rod set-ups

Complete electric deep dropping rod system for swordfish

Center rigger setup off radar mast
